(36-144) Optical Cable
Characteristics
- 12 optical fibers micro unit, using B6a2 fibers (or customer designated fiber), makes the cable miniaturization. This kind of optical cable blowing install through smaller tube, so this can improve the optical fiber density in the pipeline.
Operating Temperature:-40°C ~+ 70°C
Standards:YD/T1460.4 Microduct optical fiber cables
Applications
- Blowing installation

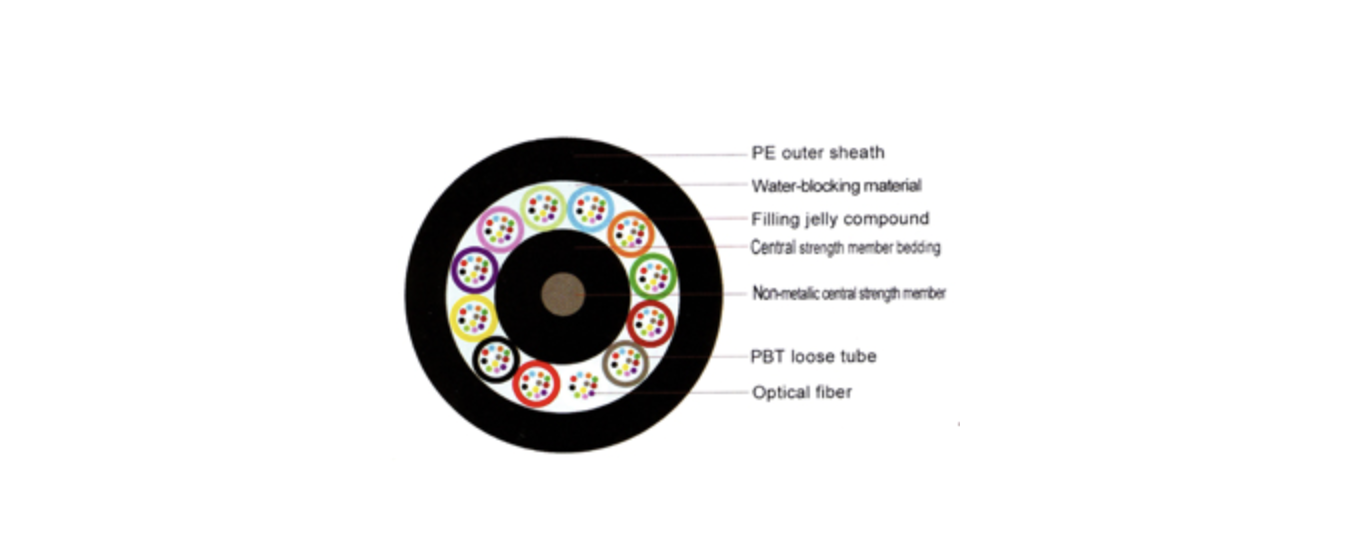

Structural Parameters
| Fiber count | Fiber count per tube |
Unit count | Nominal diameter of PBT tube (mm) |
Nominal thickness of outer sheath (mm) |
Nominal diameter (mm) |
Nominal weight (kg/km) |
Bend radius-Static state (mm) |
Bend radius-Dynamic state (mm) |
| 36-60 | 12 | 5 | 1.5 | 0.5 | 5.0 | 20 | 10D | 20D |
| 72 | 12 | 6 | 1.5 | 0.5 | 5.5 | 23 | 10D | 20D |
| 96 | 12 | 8 | 1.5 | 0.5 | 6.4 | 28 | 10D | 20D |
| 144 | 12 | 12 | 1.5 | 0.5 | 8.3 | 55 | 10D | 20D |
