(36-144) Optical Micro-Cable

Characteristics

• Micro loose tube,compact structure,small outer diameter
• LSZH loose tube,excellent flame retardant performance
• No filling jelly compound, adopt dry water-blocking method

Operating Temperature:-40°C ~+ 70°C

Standards:YD/T1460.4 Microduct optical fiber cables

Applications

• Blowing installation

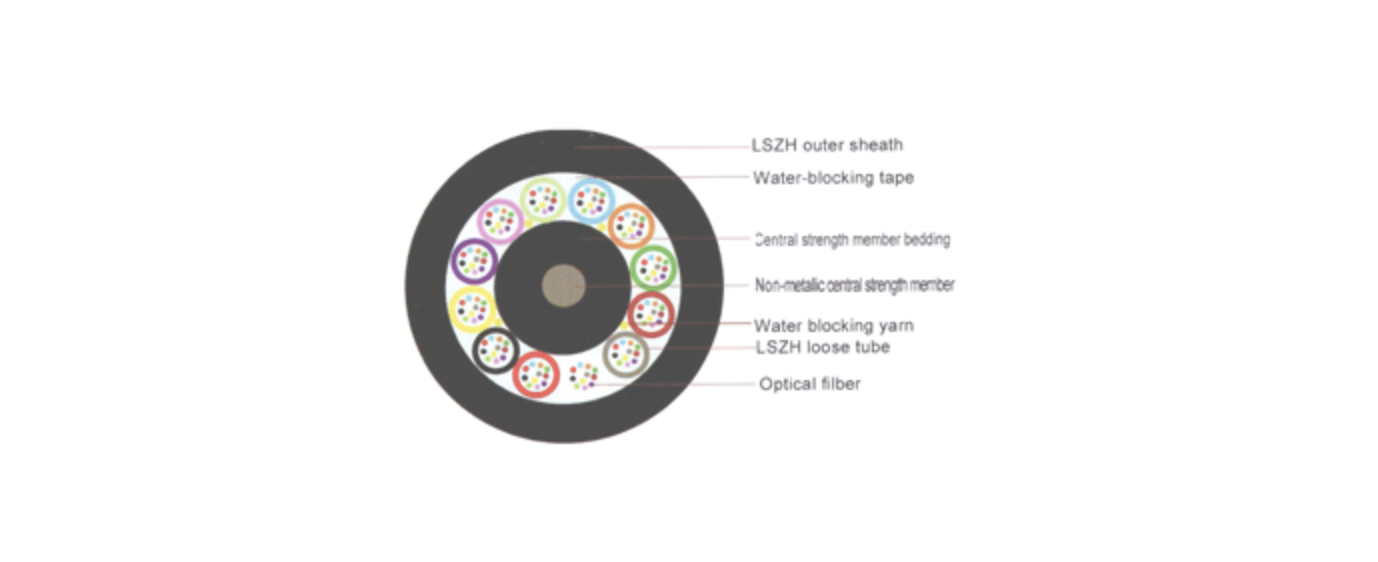

Structural Parameters

Fiber count	Fiber count per tube	Unit count	Nominal diameter of PBT tube (mm)	Nominal thickness of outer sheath (mm)	Nominal diameter (mm)	Nominal weight (kg/km)	Bend radius
							Static state (mm)	Dynamic state (mm)
36-60	12	5	1.5	0.5	5.0	20	10D	20D
72	12	6	1.5	0.5	5.5	23	10D	20D
96	12	8	1.5	0.5	6.4	28	10D	20D
12	12	1.5	0.5	8.3	55	10D	20D
