ADSS (2-72) Optical Cable

Characteristics

• For overhead power lines such as 1 Okv , 35kv, PE outer sheath will be used
• For power lines such as 110kv, 220kv, AT outer sheath will be used
• The deliberate design of uses of aramid yarn can satisfy the demands on the conditions, such as climate, various spans and sag etc
• Good performance of tensile strength and temperature
• Small diameter and lighter of the cable reducing the load caused by ice and wind on the towers and supporting structures

Operating Temperature:-40°C ~+ 70°C

Standards:YD/T980, DL/T788, IEC60794-1

Applications

• Area with lightning strike
• High voltage transmission system
• Aerial

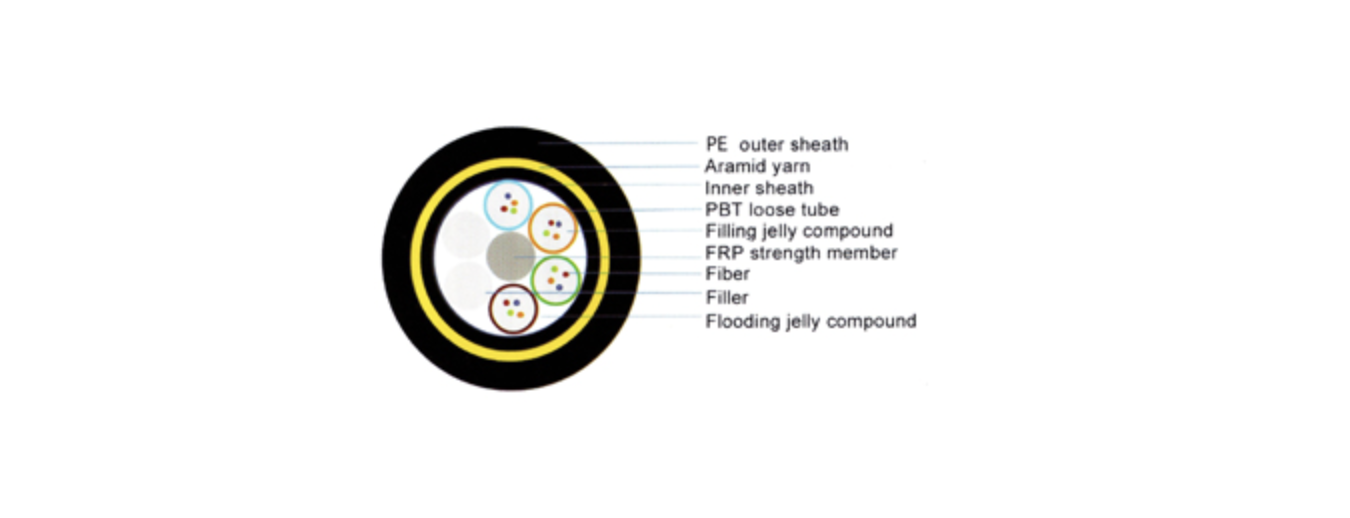

Structural Parameters

Ref. Diameter	Nominal weight	Permit working tension(Max)	Daily working tension (max)	Break strength	Suitable span
12.6	118	4000	1500	10	100
13.1	129	6000	2200	15	150
13.4	136	8000	3000	20	200
13.6	144	10000	3600	24	250
13.9	148	12000	4400	30	300
14.4	154	14000	5200	35	350
14.8	170	18000	6750	45	400
15.2	178	22000	7950	53	500
