Access Building Optical Cable

Characteristics

• Aramid yarn strength member ensures excellent tensile resistance
• Excellent press resistance and flexibility
• Material of loose tube has good hydrolysis resistance and high strength
• Excellent temperature and mechanical performance
• Good water-blocking performance
• Smaller diameter, lighter, easy installation

Operating Temperature: -40°C ~+ 60°C

Standards:YD/T1258.4,IEC60794

Applications

• Duct,aerial,metropolitan area network and access network, etc

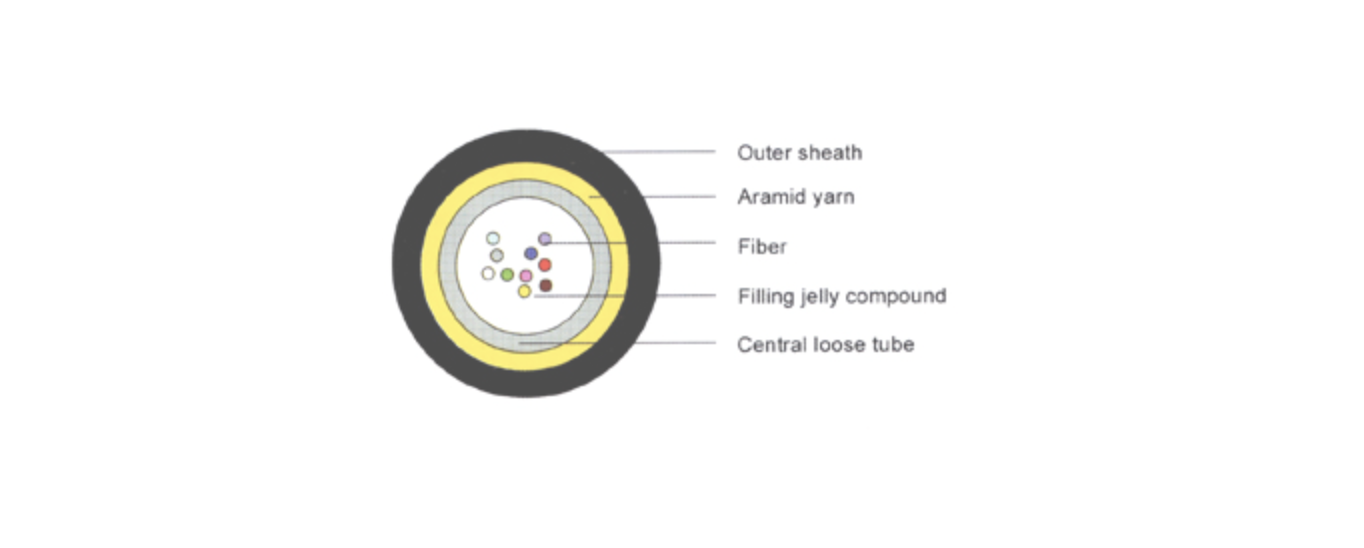

Structural Parameters

Fiber Count	Nominal diameter (mm)	Nominal weight (kg/km)	Permitted tension Long term /short term (N)	Permitted Crush Long term/short term (N)	Bend radius Static state /Dynamic state (mm)
2-12	6.0	40	600/1500	200/600	10D/20D
24	6.5	46	600/1500	200/600	10D/20D
