Bow Type Ribbon Non-Self-Supporting Drop Cable

Characteristics

• Special low sensitivity of bending fiber provides higher bandwidth and realizes the integration of Internet network, CATV network and Telephone network;
• Two parallel strength members protect fibers and ensure excellent performance of crush and tensile strength;
• Simple structure, lighter and good practicability;
• Unique gouge design, strip and splice easily, simplify installation and maintenance;
• Low smoke zero halogen sheath environment friendly.

Operating Temperature: -40°C ~+ 60°C

Standards: YD/T1997

Applications

• Access Network, Fiber To The Home (FTTH )

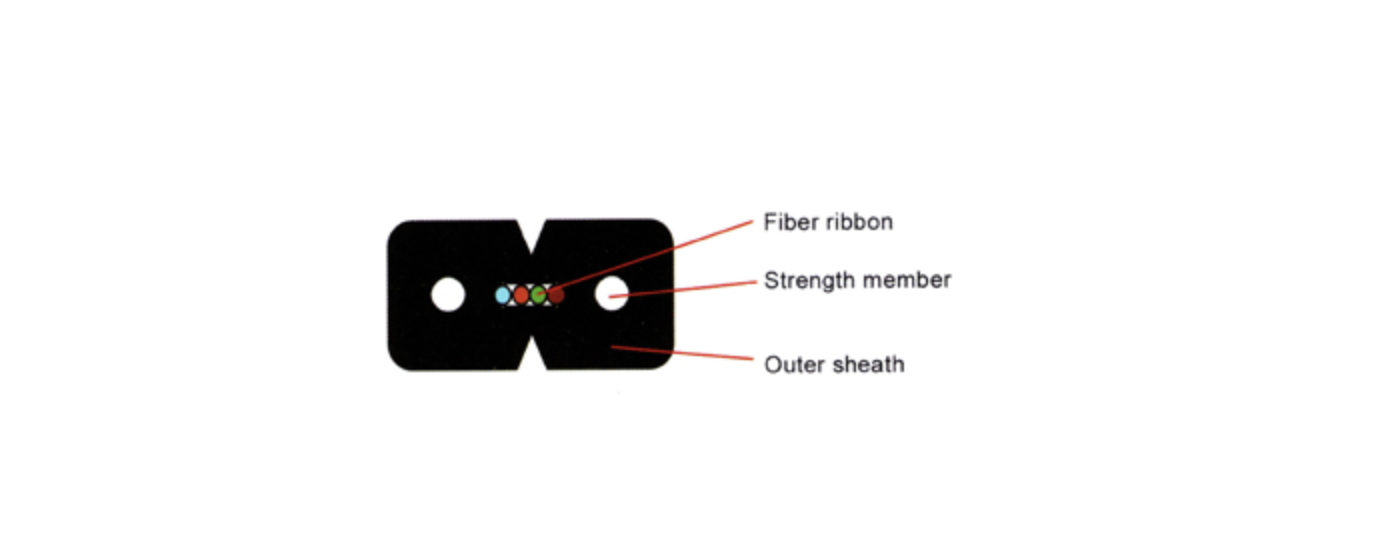

Structural Parameters

Fiber count	Dimension (mm)	Weight kg/km *FRP	Permitted tensile Long term/short term (N)	Permitted Crush Long term/short term (N)	Bend radius Static state /Dynamic state (mm)
4	4.0*2.0	* 12.0	40/80	500/1000	15/30
4	4.0*2.0	#14.0	100/200	1000/2200	15/30
8	4.0*2.3	*14.0	40/80	500/1000	15/30
8	4.0*2.3	#16.0	100/200	1000/2200	15/30
