Bow-type ribbon self-supporting drop cable

Characteristics

• Special low sensitivity of bending fiber provides higher bandwidth and realizes the integration of Internet network, CATV network and Telephone network;
• Two parallel strength members protect fibers and ensure excellent performance of crush and tensile strength;
• Simple structure, lighter and good practicability;
• Unique gouge design, strip and splice easily, simplify installation and maintenance;
• Low smoke zero halogen sheath environment friendly.

Operating Temperature: -40°C ~+ 60°C

Standards: YD/T1997

Applications

• Access Network, Fiber To The Home (FTTH )

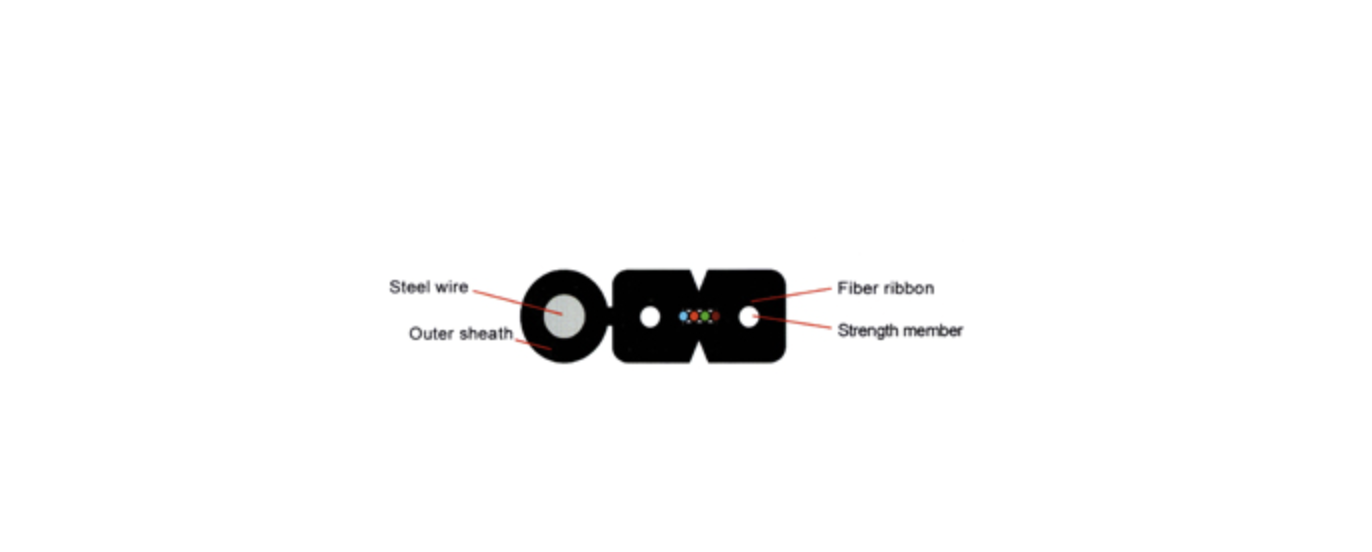

Structural Parameters

Fiber count	Dimension (mm)	Weight kg/km *FRP	Permitted tensile Long term/short term (N)	Permitted Crush Long term/short term (N)	Bend radius Static state /Dynamic state (mm)
4	5.8*2.0	* 19.0	300/600	1000/2200	15/30
4	5.8*2.0	#20.5	300/600	1000/2200	15/30
8	5.8*2.2	*19.5	300/600	1000/2200	15/30
8	5.8*2.2	#22.0	300/600	1000/2200	15/30
