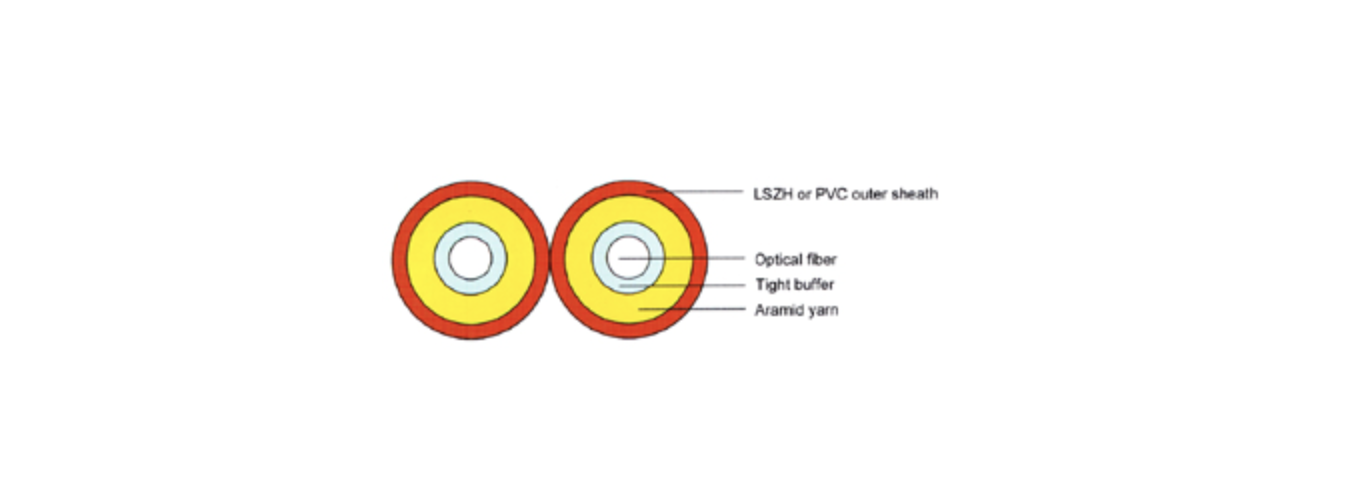

Duplex Figure “8” Indoor Cable

Characteristics

• Tight buffer fiber, be striped easily and excellent flame retardant
• Aramid yarn makes the optical fiber cable have excellent performance of flame and tensile strength resistance
• Easy Installation. Separated easily and used as single unit
• Material of outer sheath shall be corrosion resistant, water-blocking,flame retardant,environment friendly etc.
• Not be influenced by electromagnetism due to all dielectric structural design.

Operating Temperature: -40°C ~+ 60°C

Standards:YD/T1258.3,IEC60794-2-10/11

Applications

• Duplex optical fiber jumper or pigtail
• Indoor cabling
• Connections of apparatuses or communication equipments

Structural Parameters

Nominal diameter (mm)	Nominal weight (kg/km)	Permitted tension Long term /short term (N)	Permitted Crush Long term/short term (N)	Bend radius Static state /Dynamic state (mm)
1.6x3.3	5	100/200	100/500	10D/20D
1.8x3.7	6	100/200	100/500	10D/20D
2.0x4.1	8	100/200	100/500	10D/20D
2.4x4.9	11	100/200	100/500	10D/20D
2.Sx5.1	12	100/200	100/500	10D/20D
2.8xS.7	14	100/200	100/500	10D/20D
3.0x6.1	15	100/200	100/500	10D/20D
