Duplex Flat Optical Cable

Characteristics

• Tight buffer fiber, excellent flame retardant
• Aramid yarn ensures excellent performance of flame and tensile strength resistance
• Flat structure, excellent mechanical performance
• Material of outer sheath shall be corrosion resistant, water-blocking,flame retardant and environment friendly etc.
• Not be influenced by electromagnetism due to all dielectric structural design.

Operating Temperature: -40°C ~+ 60°C

Standards:YD/T1258.3,IEC60794-2-10/11

Applications

• Duplex optical fiber jumper or pigtail
• Indoor cabling
• Connections of apparatuses or communication equipments

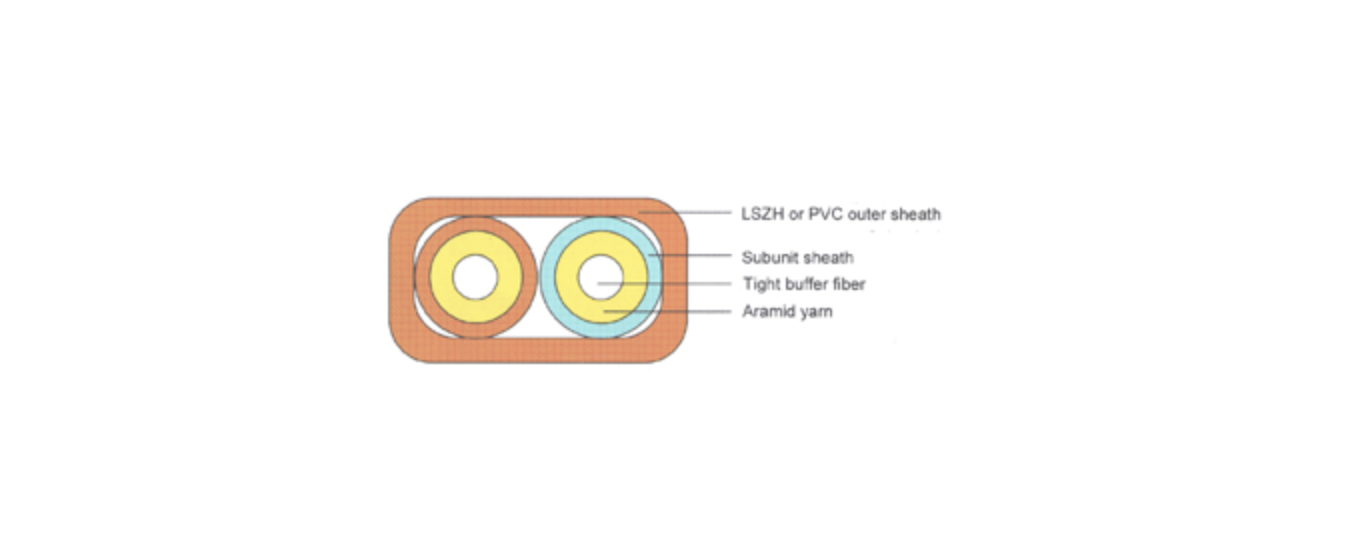

Structural Parameters

Nominal diameter (mm)	Unit diameter (mm)	Nominal weight (kg/km)	Permitted tension Long term /short term (N)	Permitted Crush Long term/short term (N)	Bend radius Static state /Dynamic state (mm)
3.0x5.0	2.0	19	150/300	100/500	10D/20D
4.0x7.0	2.8	31	200/400	100/500	10D/20D
4.4x7.4	3.0	37	200/400	100/500	10D/20D
