FTTH Bow Type Drop Cable

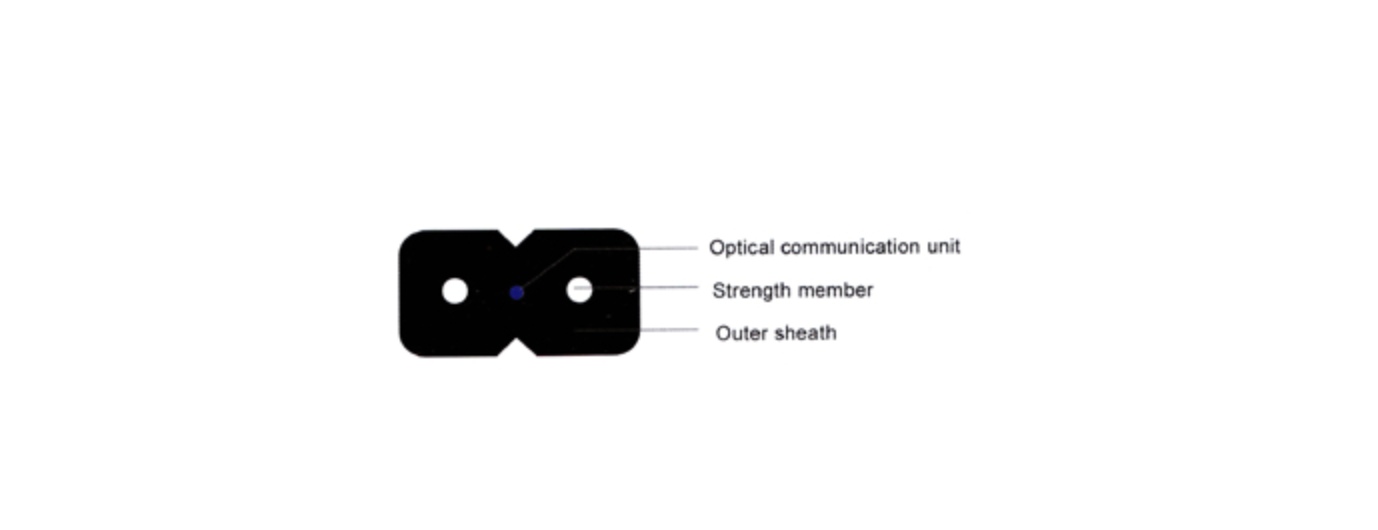

FTTH indoor cable consists of optical communication unit, strength member and outer sheath;

Optical communication unit includes fibers or tight buffer fibers etc.

Metallic or non-metallic strength member will be used according to the demands of the customers.

Characteristics

• Special low sensitivity of bending fiber provides higher bandwidth and realizes the integration of Internet network, CATV network and Telephone network;
• Two parallel strength members protect fibers and ensure excellent performance of crush and tensile strength;
• Simple structure, lighter and good practicability;
• Unique gouge design, strip and splice easily, simplify installation and maintenance;
• Low smoke zero halogen sheath environment friendly.

Operating Temperature: -40°C ~+ 70°C

Standards: YD/T1997

Structural Parameters

Fiber count	Dimension (mm)	Weight kg/km *FRP	Permitted tensile Long term/short term (N)	Permitted Crush Long term/short term (N)	Bend radius Static state /Dynamic state (mm)
Single or Double Fibers	(2.0±0.1) x (3.0±0.1)	* 8.5	40/80	500/1000	15/30
Single or Double Fibers	(2.0±0.1) x (3.0±0.1)	#10.0	100/200	1000/2200	15/30
Three or Four Fibers	(2.0±0.1) x (3.1 ±0.1)	* 9.5	40/80	500/1000	15/30
Three or Four Fibers	(2.0±0.1) x (3.1 ±0.1)	#11.0	100/200	1000/2200	15/30
Single Fiber Tight Buffer	(2.0±0.2) x (3.8±0.2)	* 11.0	40/80	500/1000	15/30
Single Fiber Tight Buffer	(2.0±0.2) x (3.8±0.2)	#14.0	100/200	1000/2200	15/30
