GTYA (2-288) Optical Cable

Characteristics

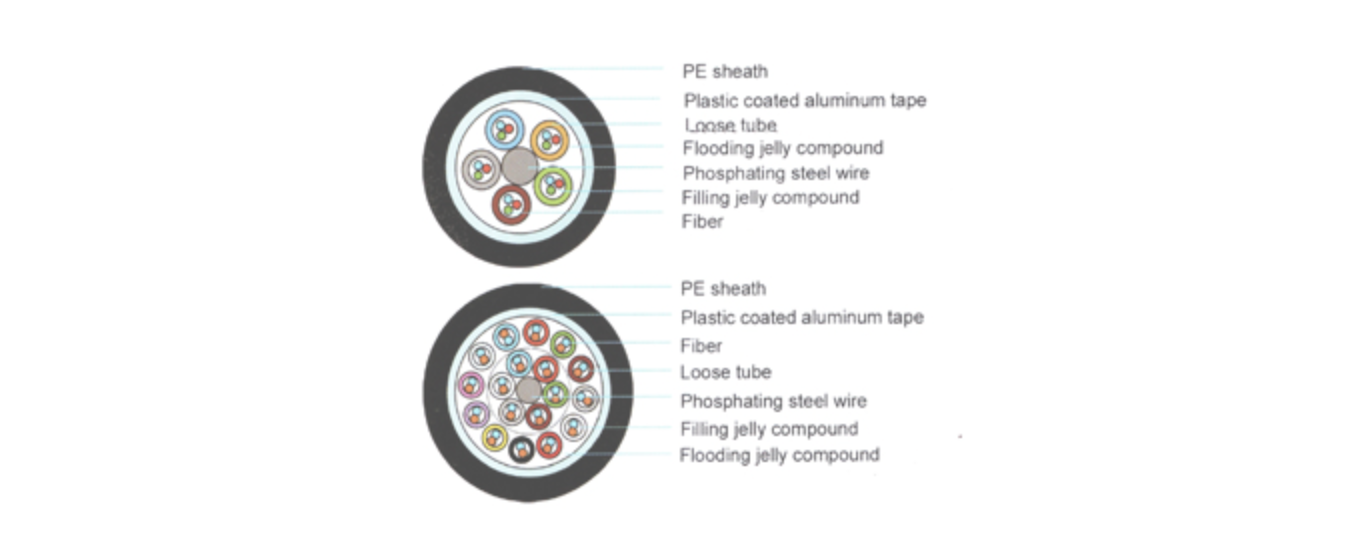

• Structure with corrugated aluminum tape against moisture,loose tube stranding with single sheath
• Loose tube material has good hydrolysis resistance performance and high strength
• Compact structure. excellent water blocking performance
• Strict manufacturing processes. Good mechanical performance and environmental properties. .

Operating Temperature:-40°C ~+ 70°C

Standards: YD/T901-2009, IEC60794-1

Applications

• Duct, aerial
• Long haul communication system
• Relay communication system
• Core network, metropolitan area network and access network etc

Structural Parameters

Fiber Count	Structure	Nominal Diameter (mm)	Nominal Weight (kg/km)	Permitted Tensile Long term/Short term (N)	Permitted Crush Long term/Short term (N)	Bend radius Static state/ Dynamic state (mm)
2-30	1+5	9.3	78	600/1500	300/1000	10D/20D
32-36	1+6	9.7	91	600/1500	300/1000	10D/20D
38-60	1+5	9.8	86	600/1500	300/1000	10D/20D
62-72	1+6	10.7	110	600/1500	300/1000	10D/20D
74-84	1+7	11.4	118	600/1500	300/1000	10D/20D
86-96	1+8	12.1	131	600/1500	300/1000	10D/20D
98-108	1+9	12.7	143	600/1500	300/1000	10D/20D
110-120	1+10	13.3	154	600/2000	300/1000	10D/20D
122-132	1+11	13.9	167	600/2000	300/1000	10D/20D
134-144	1+12	14.6	182	600/2000	300/1000	10D/20D
146-216	1+6+12	14.7	190	600/2000	300/1000	10D/20D
218-288	1+9+15	16.7	234	600/2500	300/1000	10D/20D
