GYDTA (36-576) Optical Cable

Characteristics

• Good mechanical performance, temperature properties
• Loose tube of PBT material has good hydrolysis resistance perform­ance and high strength
• Tube filling with the special imported jelly compound to protect the fibers
• The concentration of the fibers is high, the diameter of the optical fiber cable is smaller, so the weight of the cable is lighter
• Excellent moisture resistance, water-blocking performance.

Operating Temperature:-40°C ~+ 70°C

Standards:YD/T981, IEC60794

Applications

• Aerial, Duct
• Metropolitan area network and access network etc

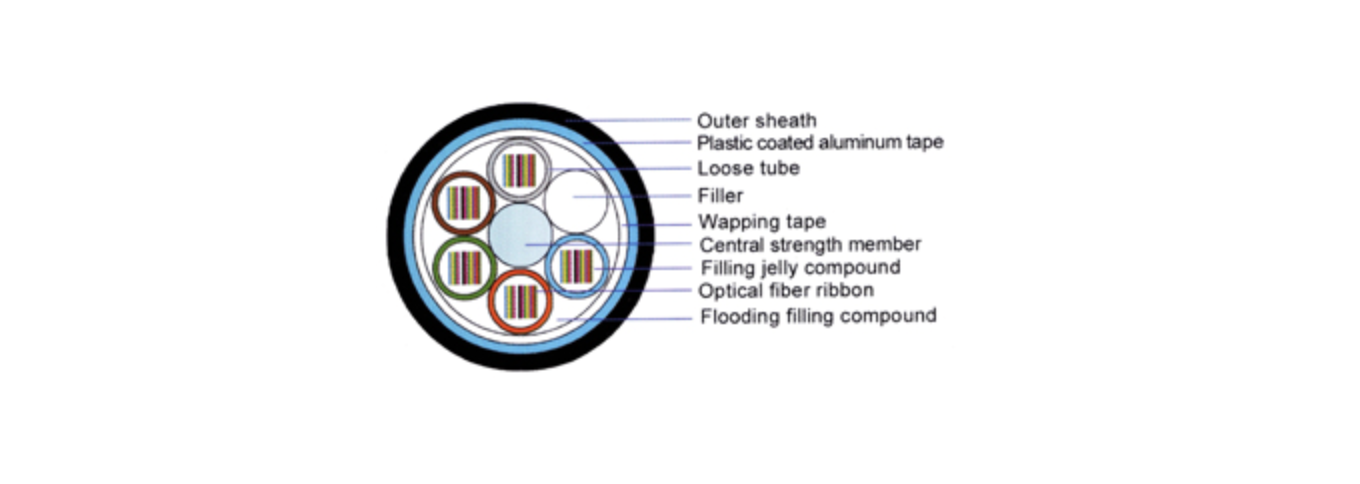

Structural Parameters

Fiber Count/Ribbon count	Structure	Nominal Diameter (mm)	Nominal Weight (kg/km)	Permitted Tensile Long term/Short term (N)	Permitted Crush Long term/Short term (N)	Bend radius Static state /Dynamic (mm)
36-144/12F	1+4	16.7	235	1000/2000	300/1000	10D/20D
48-192/12F	1+4	17.4	260	1000/2000	300/1000	10D/20D
72-288/12F	1+4	18.4	308	1000/3000	30011000	10D/20D
300-360/12F	1+5	20.2	340	1000/3000	30011000	10D/20D
300-384/12F	1+4	20.0	350	1000/3000	30011000	10D/20D
372-432/12F	1+6	21.8	400	1000/3000	30011000	10D/20D
396-432/12F	1+4	20.8	370	1000/3000	300/1000	10D/20D
576/12F	1+6	24.0	485	1000/3000	30011000	10D/20D
