GYDXTS (2-288) Optical Cable
Characteristics

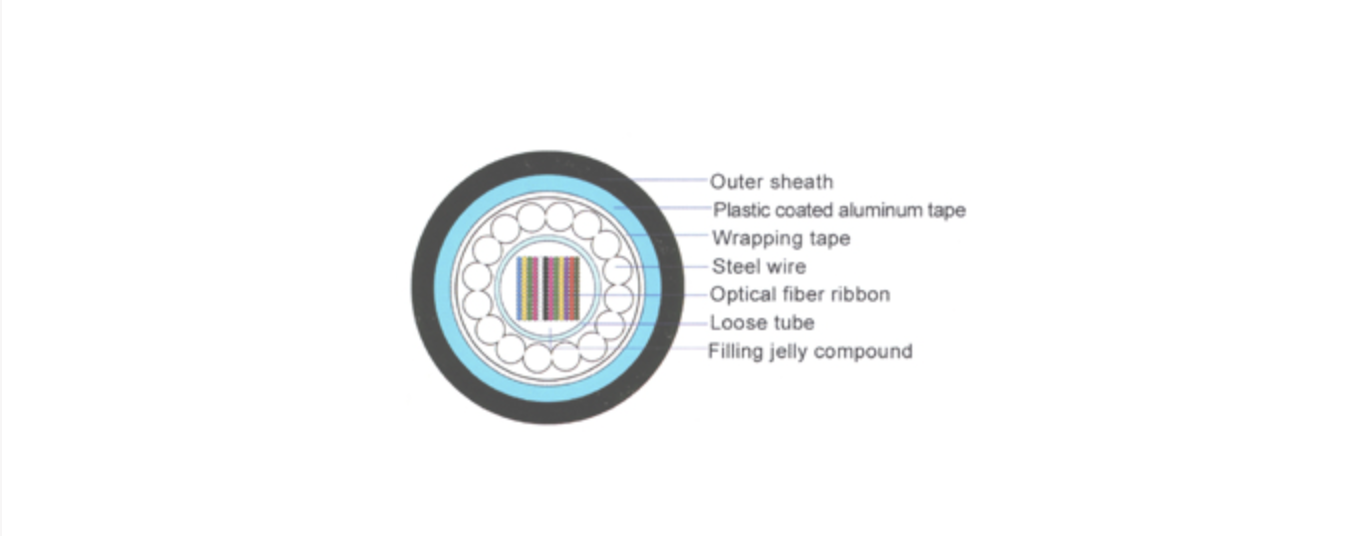

- Central tube, steel wires, corrugated steel tape armored structure
- Excellent tensile strength and side-press resistance
- Excellent mechanical performance
Operating Temperature:-40°C ~+ 70°C
Standards:YD/T981, IEC60794
Applications
- Aerial, Buried
- Distribution line and feeder line of outdoor for access network etc.
Structural Parameters
| Fiber Count /Ribbon count | Structure | Nominal Diameter (mm) | Nominal Weight (kg/km) | Permitted Tensile Long term/Short term (N) | Permitted Crush Long term/Short term (N) | Bend radius Static state /Dynamic (mm) |
| 2-36 | 1+6 | 9.6 | 78 | 1000/3000 | 300/1000 | 10D/20D |
| 38-72 | 1+6 | 10.3 | 88 | 1000/3000 | 30011000 | 10D/20D |
| 74-84 | 1+7 | 11 | 101 | 1000/3000 | 30011000 | 10D/20D |
| 86-96 | 1+8 | 11.8 | 112 | 1000/3000 | 30011000 | 10D/20D |
| 98-108 | 1+9 | 12.4 | 122 | 1000/3000 | 300/1000 | 10D/20D |
| 110-120 | 1+10 | 13 | 132 | 1000/3000 | 30011000 | 10D/20D |
| 122-132 | 1+11 | 13.6 | 144 | 1000/3000 | 300/1000 | 10D/20D |
| 134-144 | 1+12 | 14.3 | 157 | 1000/3000 | 30011000 | 10D/20D |
| 146-216 | 1+6+12 | 14.8 | 168 | 1000/3000 | 300/1000 | 10D/20D |
| 218-288 | 1+9+15 | 16.5 | 249 | 1000/3000 | 30011000 | 10D/20D |
