GYDXTW (12-216) Optical Cable

Characteristics

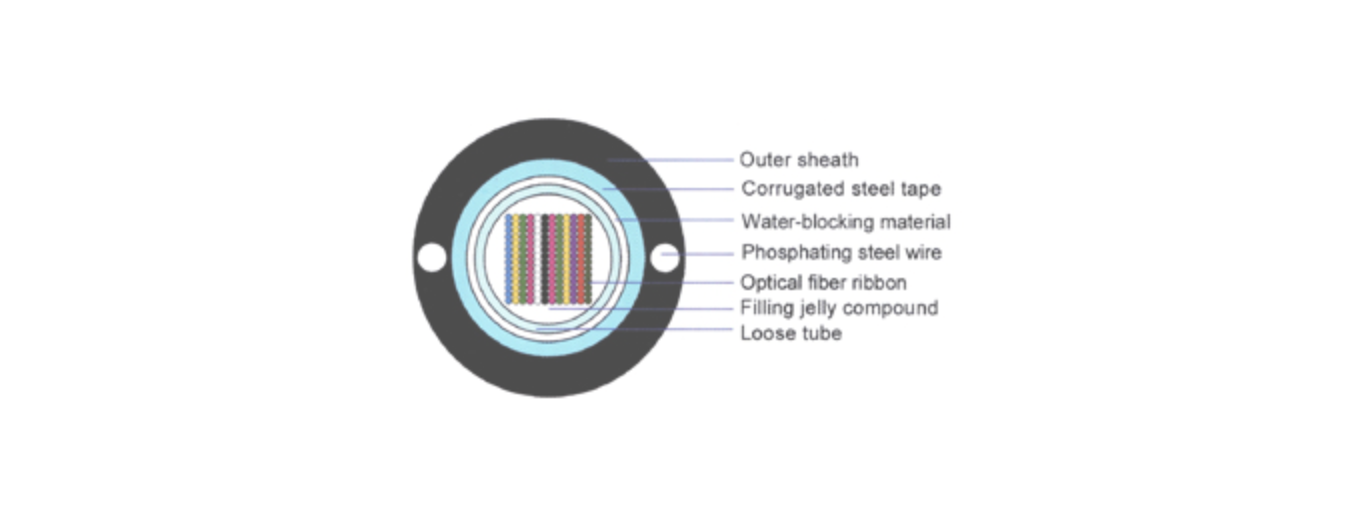

• Central tube, parallel steel wires, corrugated steel tape armoring type
• Small diameter, lighter, more fibers
• Excellent mechanical and moisture prevention performance

Operating Temperature:-40°C ~+ 70°C

Standards:YD/T981.2, IEC60794

Applications

• Aerial, buried
• Distribution line and feeder line of out door
• for access network

Structural Parameters

Fiber Count/Ribbon count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Permitted Tensile Long term/Short term (N)	Permitted Crush Long term/Short term (N)	Bend radius Static state /Dynamic (mm)
36-48/12F	13.0	130	600/1500	300/1000	10D/20D
60-72/12F	14.1	158	600/1500	300/1000	10D/20D
84-96/12F	14.9	175	600/1500	300/1000	10D/20D
108-120/12F	15.7	190	600/1500	300/1000	10D/20D
132-144/12F	16.3	205	600/1700	300/1000	10D/20D
156-168/12F	16.8	220	600/1800	300/1000	10D/20D
180-192/12F	17.6	235	600/1900	300/1000	10D/20D
204-216/12F	18.0	248	600/2000	300/1000	10D/20D
