GYFXTS (2-24) Optical Cable

Characteristics

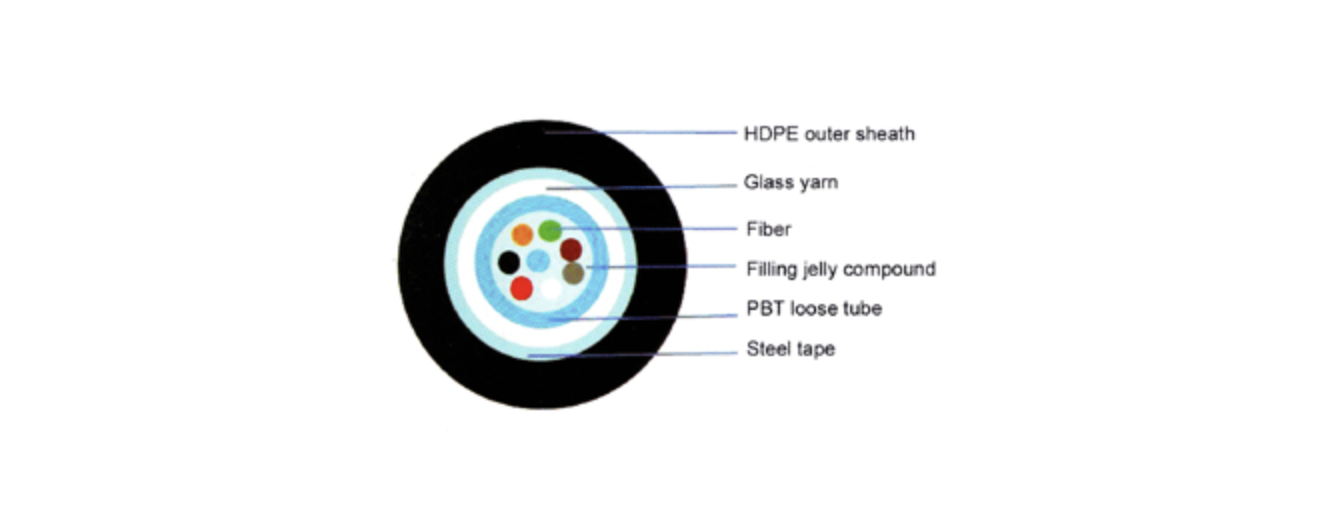

• Structure with central tube and glass yarn reinforced, corrugated steel tape armor
• Good mechanical performance
• Excellent moisture resistance, water-blocking performance
• Small diameter, lighter, easy installation
• Glass yarn strength member improve the mechanical properties, and can also prevent ant bites

Operating Temperature:-40°C ~+ 70°C

Standards:YD/T769, IEC60794-1

Applications

• Duct, aerial
• Access network, FTTH

Structural Parameters

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Permitted Tensile Long term/Short term (N)	Permitted Crush Long term/Short term (N)	Bend radius Static state IDynamic (mm)
2-12	8.3	75	600/1500	300/800	100/200
24	8.5	78	600/1500	300/800	100/200
