GYTA53 (4-288) Optical Cable

Characteristics

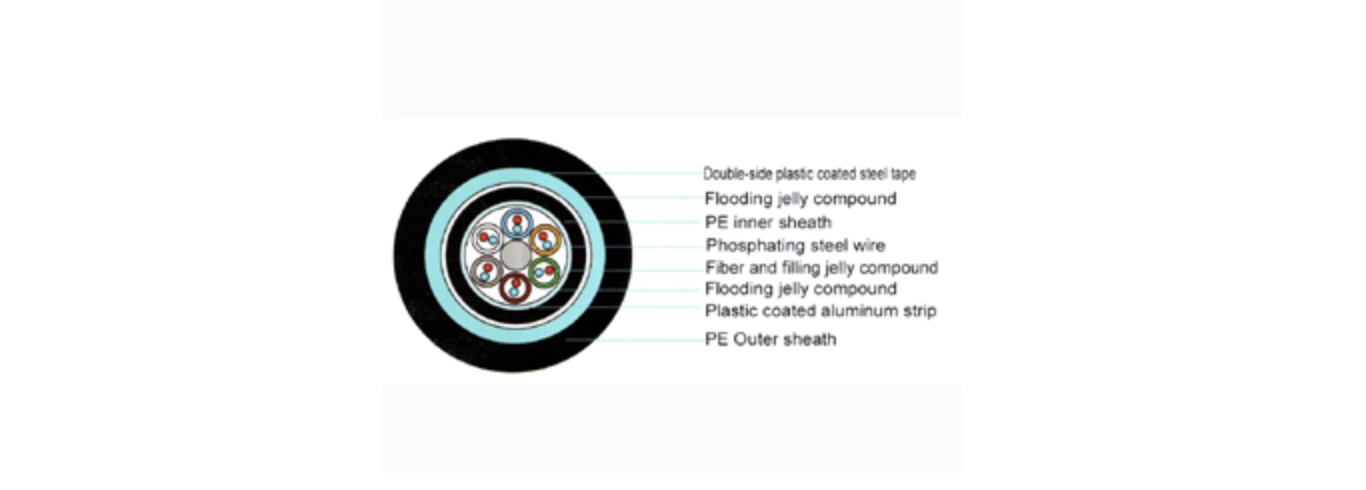

• Structure with aluminium tape against moisture, corrugated steel tape as armor, loose tube stranding and double sheaths
• Loose tube material has good hydrolysis resistance performance and high strength
• Compact structure. excellent water blocking performance
• Strict manufacturing processes.
• Good mechanical performance and environmental properties. .

Operating Temperature:-40°C ~+ 70°C

Standards:YD/T901-2009, IEC60794-1

Applications

• Buried, Cable trench
• Relay communication system
• Core network, metropolitan area network and access network etc

Structural Parameters

Fiber Count	Structure	Nominal Diameter (mm)	Nominal Weight (kg/km)	Permitted Tensile Long term/Short term (N)	Permitted Crush Long term/Short term (N)	Bend radius Static state/ Dynamic state (mm)
4-36	1+6	12.8	168	1000/3000	1000/3000	12.5D/25D
38-72	1+6	13.6	188	1000/3000	1000/3000	12.5D/25D
74-84	1+7	14.7	214	1000/3000	1000/3000	12.5D/25D
86-96	1+8	15.4	232	1000/3000	1000/3000	12.5D/25D
98-108	1+9	16	248	1000/3000	1000/3000	12.5D/25D
110-120	1+10	16.6	263	1000/3000	1000/3000	12.5D/25D
122-132	1+11	17.2	280	1000/3000	1000/3000	12.5D/25D
134-144	1+12	17.9	300	1000/3000	1000/3000	12.5D/25D
146-216	1+6+12	18	326	1000/3000	1000/3000	12.5D/25D
218-288	1+9+15	20.5	405	1000/3000	1000/3000	12.5D/25D
