GYTA5333 (2-36) Optical Cable

Characteristics

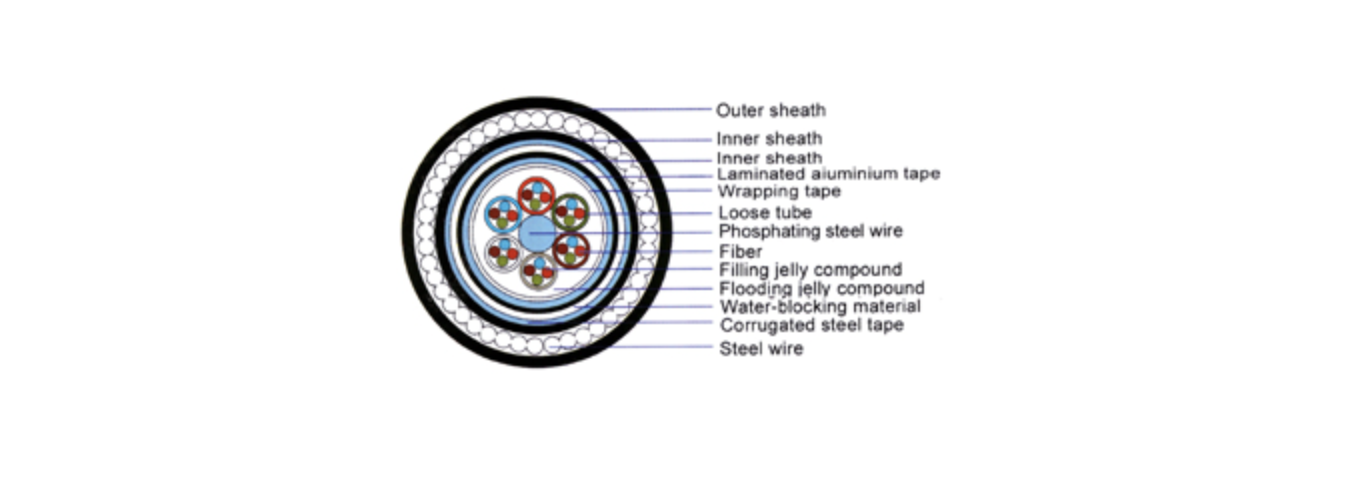

• Corrugated steel tape armoring I steel wires armoring, loose tube stranding, three-layer sheaths structure;
• Loose tube material has good hydrolysis resistance performance and high strength;
• Compact structure, excellent water-blocking performance;
• Strict manufacturing processes. Good mechanical performance and environmental properties.

Operating Temperature:-40°C ~+ 70°C

Standards:YD/T901-2009, IEC60794-1

Applications

• Buried, underwater
• Relay communication system
• Core network, metropolitan area network and access network etc

Structural Parameters

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Permitted Tensile Long term/Short term (N)	Permitted Crush Long term/Short term (N)	Bend radius Static state IDynamic (mm)
2-36	18.5	530	5000/10000	3000/5000	150/300
2-36	20	680	10000/20000	3000/5000	150/300
