GYTC8S (2-288) Optical Cable

Characteristics

• High tensile strength of stranded wires meet the requirement of self-supporting;
• Good mechanical and temperature performance;
• Excellent water-blocking performance;
• Loose tube material has good hydrolysis resistance performance and high strength.

Operating Temperature:-40°C ~+ 70°C

Standards:YD/T901-2009, IEC60794-1

Applications

• Aerial
• Core network, metropolitan area network and access network etc

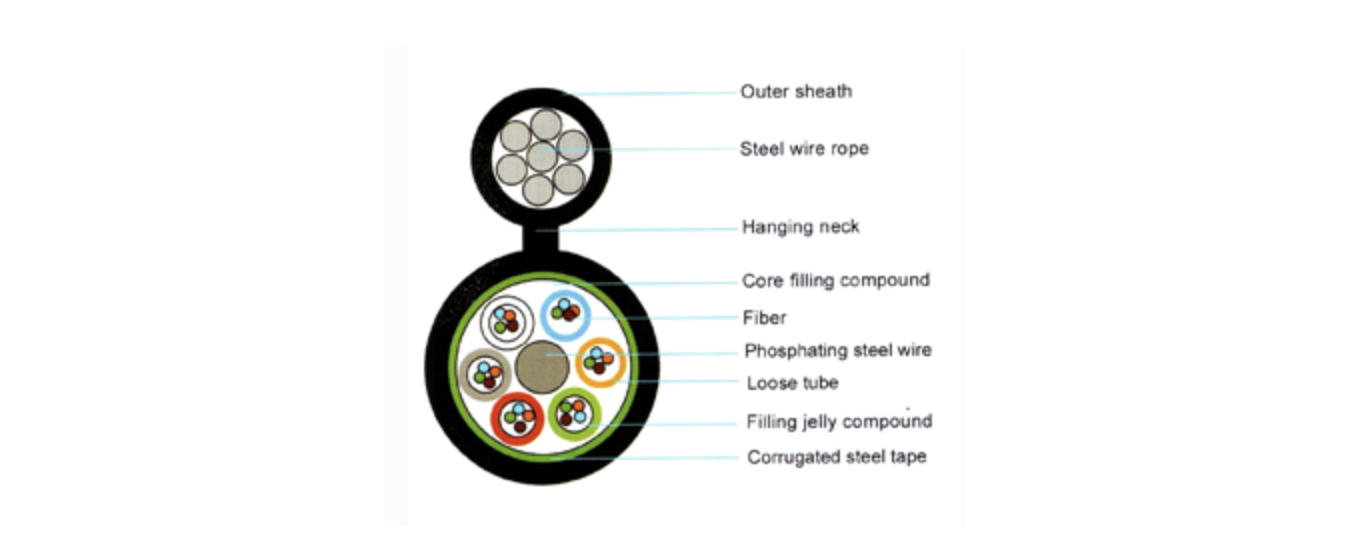

Structural Parameters

Fiber Count	Structure	Nominal Diameter (mm)	Nominal Weight (kg/km)	Permitted Tensile (with hanging wire) (N)	Permitted Crush (N)	Bend radius (mm)
2-30	1+5	9*16.8	150	1000/5000	1000/3000	10D/20D
32-36	1+6	9.4*17.2	164	1000/5000	1000/3000	10D/20D
38-60	1+5	9.6*17.4	163	1000/5000	1000/3000	10D/20D
62-72	1+6	10.4*18.2	184	1000/5000	1000/3000	10D/20D
74-84	1+7	11.2*19.6	212	1000/7000	1000/3000	10D/20D
86-96	1+8	11.8*20.2	222	1000/7000	1000/3000	10D/20D
