GYTS (2-288) Optical cable

Characteristics

• Corrugated steel tape armoring, loose tube stranding with single sheath
• Loose tube material has good hydrolysis resistance performance and high strength;
• Compact structure, excellent water-blocking performance;
• Strict manufacturing processes. Good mechanical performance and environmental properties.

Operating Temperature:-40°C ~+ 70°C

Standards:YD/T901-2009, IEC60794-1

Applications

• Buried, duct, aerial
• Relay communication system
• Core network

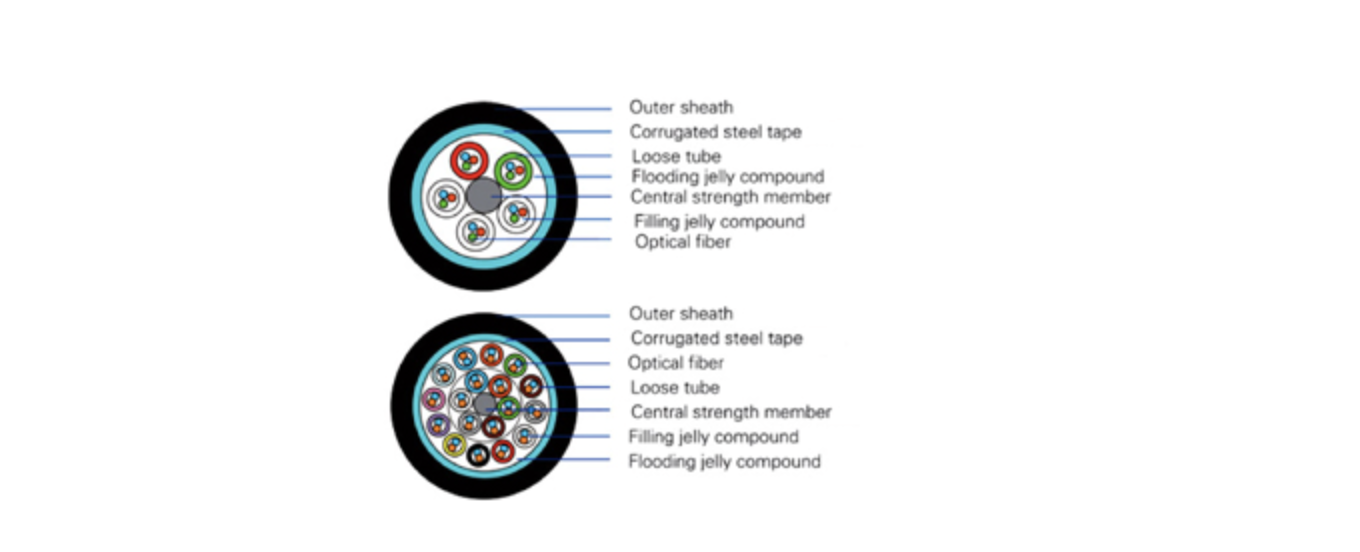

Structural Parameters

Fiber Count	Structure	Nominal Diameter (mm)	Nominal Weight (kg/km)	Permitted Tensile Long term/Short term (N)	Permitted Crush Long term/Short term (N)	Bend radius Static state/ Dynamic state (mm)
2-30	1+5	9.2	89	600/1500	300/1000	100/200
32-36	1+6	9.7	104	600/1500	300/1000	100/200
38-60	1+5	9.8	99	600/1500	300/1000	100/200
62-72	1+6	10.7	125	600/1500	300/1000	100/200
74- 84	1+7	11.4	135	600/1500	300/1000	100/200
86-96	1+8	12.1	148	600/2000	300/1000	100/200
98-108	1+9	12.7	162	600/2000	300/1000	100/200
110-120	1+10	13.3	174	600/2000	300/1000	100/200
122-132	1+11	13.9	187	600/2000	300/1000	100/200
134-144	1+12	14.6	204	600/2000	300/1000	100/200
146-216	1 +6+12	14.7	212	600/2500	300/1000	100/200
218-288	1+9+15	16.7	254	600/3000	300/1000	100/200
