GYTS54 (2-144) Optical Cable

Characteristics

• Double armored, double PE sheath and nylon sheath to protect the fiber from damage
• Steel tape armored, steel wire armouring, Strict manufacturing processes
• Excellent moisture resistance, water-blocking performance
• Good mechanical performance and environmental properties
• Compact structure, excellent water-blocking performance.

Operating Temperature:-40°C ~+ 70°C

Standards:YD/T901-2009, IEC60794-1

Applications

• Buried, duct, aerial
• Core network, metropolitan area network and access network etc
• Rodent-infested areas

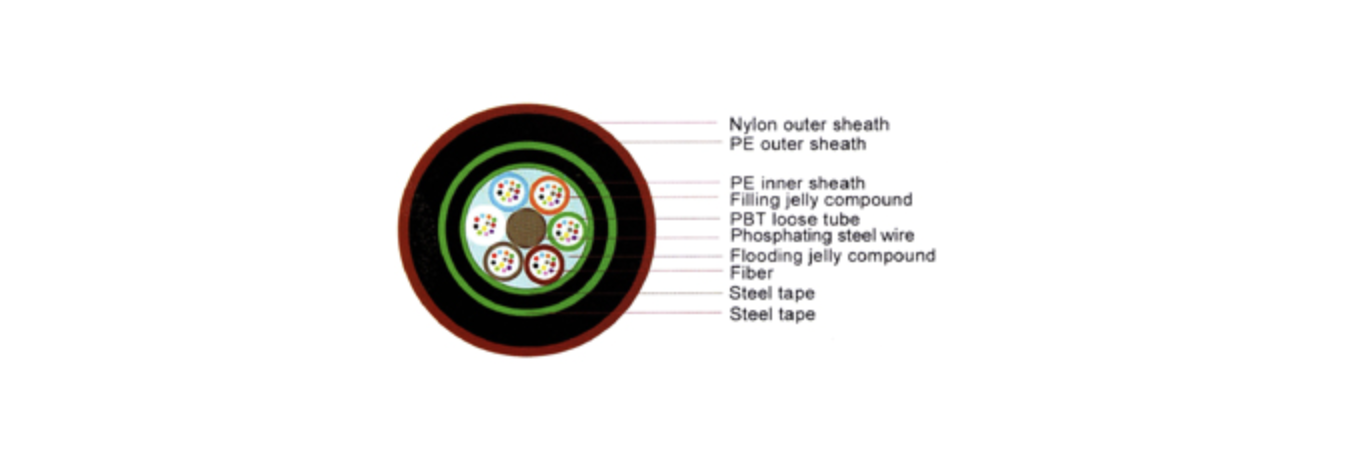

Structural Parameters

Fiber Count	Structure	Nominal Diameter (mm)	Nominal Weight (kg/km)	Permitted Tensile Long term/Short term (N)	Permitted Crush Long term/Short term (N)	Bend radius Static state Dynamic (mm)
2-30	1+5	13.7	185	600/1500	1000/3000	12.5D/25D
32-36	1+6	14.2	208	100013000	1000/3000	12.5D/25D
38-60	1+5	14.3	200	600/1600	1000/3000	12.5D/25D
62-72	1+6	15	230	100013000	1000/3000	12.5D/25D
74-84	1+7	15.7	250	100013000	1000/3000	12.5D/25D
86-96	1+8	16.4	268	1000/3000	1000/3000	12.5D/25D
98-108	1+9	17	286	1000/3000	1000/3000	12.5D/25D
110-120	1+10	17.6	305	1000/3000	1000/3000	12.5D/25D
122-132	1+11	18.2	325	1000/3000	1000/3000	12.5D/25D
134-144	1 +12	19.1	350	1000/3000	1000/3000	12.5D/25D
