GYXTS (2-12) Optical Cable
Characteristics

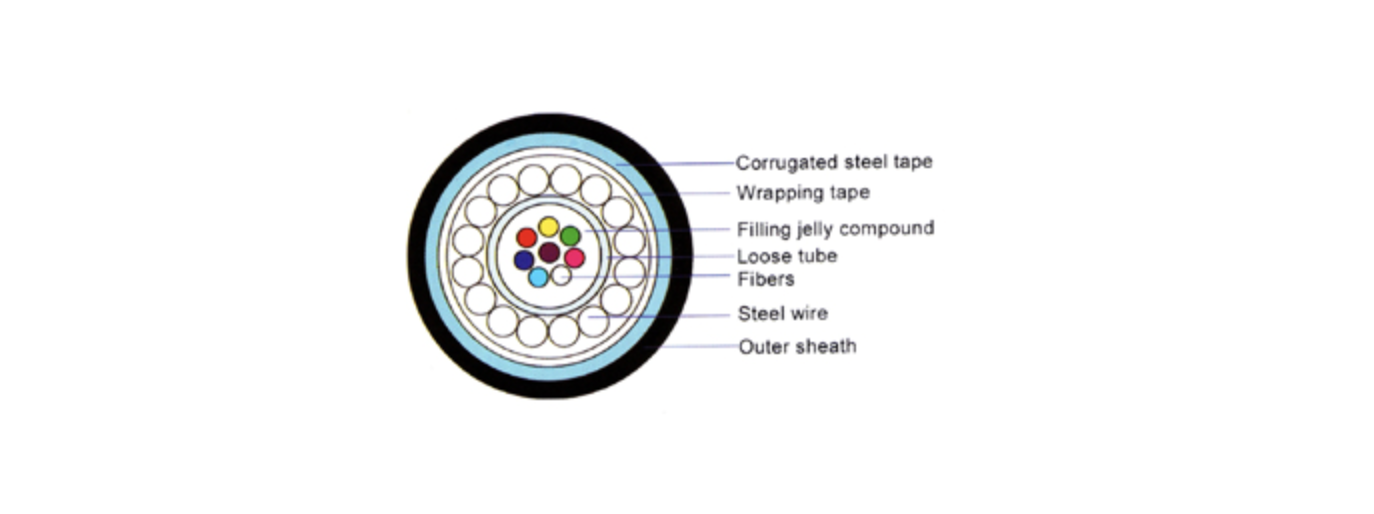

- Central tube,steel wires and steel tape armoring single sheath structure
- Small diameter, excellent tensile strength and side-press resistance
- Anti-gunnery and anti-rodent
Operating Temperature:-40°C ~+ 70°C
Standards:YD/T769, IEC60794
Applications
- Aerial, buried
- Relay Communication system
Structural Parameters
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Permitted Tensile Long term/Short term (N) | Permitted Crush Long term/Short term (N) | Bend radius |
| 2-12 | 9.5 | 130 | 1000/3000 | 1000/3000 | 10D/20D |
