GYXTW (2-24) Optical Cable

Characteristics

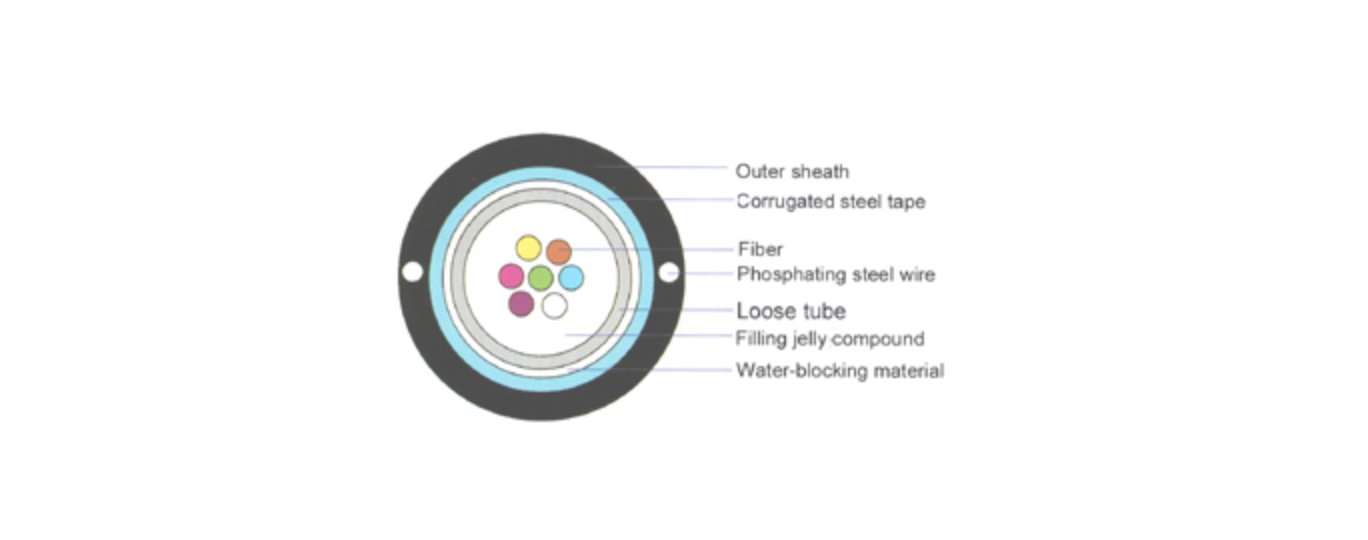

• Structure with central tube and glass yarn reinforced, corrugated steel tape armoring
• Good mechanical performance
• Excellent moisture resistance, water-blocking performance
• Small diameter, lighter, easy installation

Operating Temperature:-40°C ~+ 70°C

Standards:YD/T769

Applications

• Aerial, direct buried
• Core network, access network, metropolitan area network

Structural Parameters

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Permitted Tensile Long term/Short term (N)	Permitted Crush Long term/Short term (N)	Bend radius Static state /Dynamic (mm)
2-12	8.5	75	600/1500	300/1000	10D/20D
2-12	9.1	100	1000/3000	1000/3000	10D/20D
24	9.5	110	600/1500	300/1000	10D/20D
