High Voltage Pin Insulator

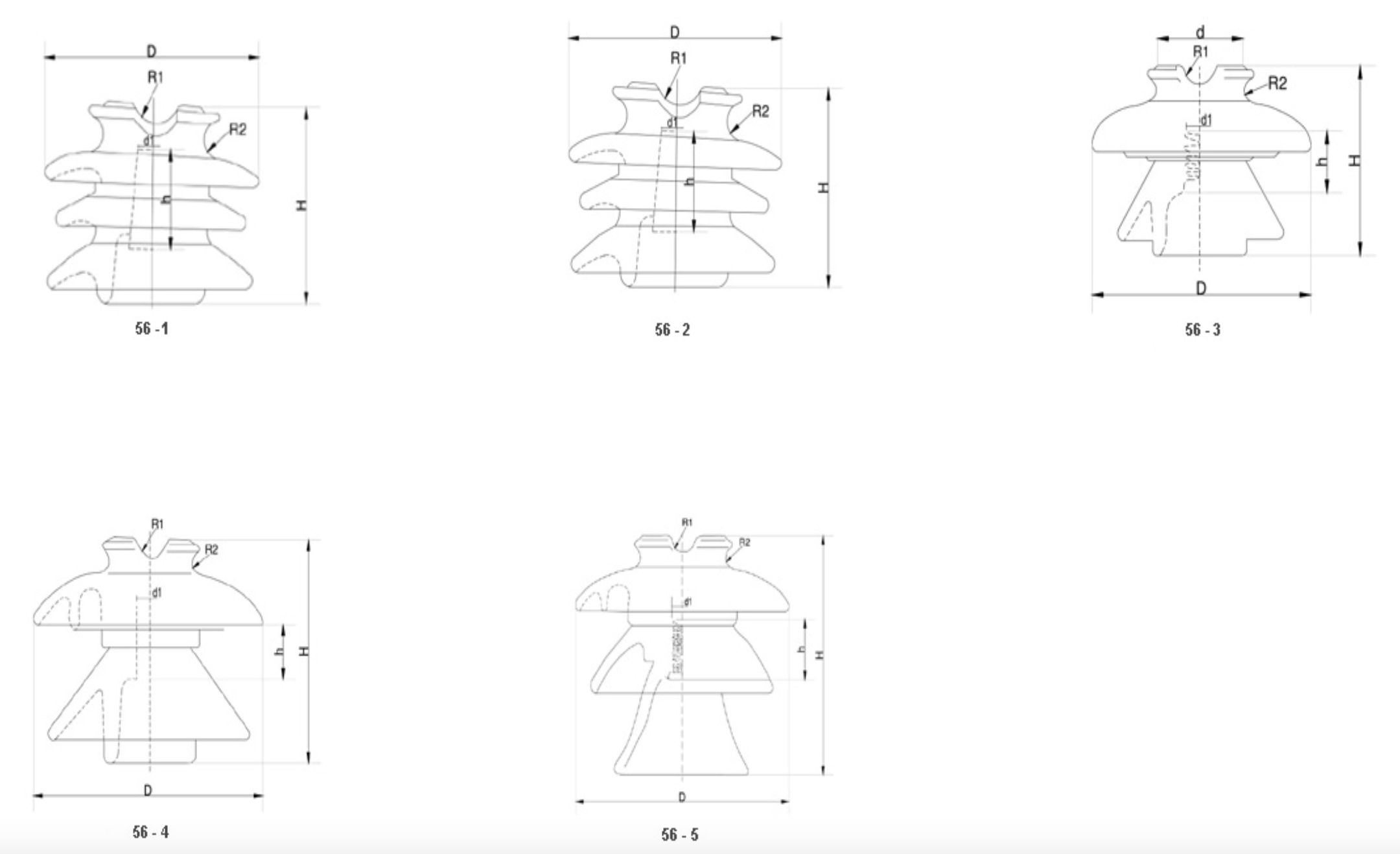

Main dimensions and standard particulars
| Type | 56-1 | 56-2 | 56-3 | 56-4 | 56-5 | ||
| Fig No | 1 | 1 | 2 | 2 | 3 | ||
| Main dimensions (mm) | H | 146 | 165 | 191 | 241 | 318 | |
| h | 51 | 51 | 51 | 51 | 63.5 | ||
| D | 191 | 228 | 267 | 305 | 343 | ||
| d | 35 | 35 | 35 | 35 | 35 | ||
| R1 | 19 | 19 | 19 | 19 | 19 | ||
| R2 | 14 | 14 | 14 | 14 | 14 | ||
| Creepage distance(mm) | 330 | 432 | 533 | 686 | 865 | ||
| Flashover Voltage(kV) | Power frequency | Dry | 95 | 110 | 125 | 140 | 175 |
| Wet | 60 | 70 | 80 | 95 | 125 | ||
| 50% impulse | Pos. | 150 | 175 | 200 | 225 | 270 | |
| Neg. | 190 | 225 | 265 | 310 | 340 | ||
| Radio influence voltage | Test voltage to
ground(KV) |
15 | 22 | 30 | 30 | 44 | |
|
Max.RIV at 1000 (Hz-µv) |
100 | 100 | 200 | 200 | 200 | ||
| Low freq.Puncture voltage(kV) | 130 | 145 | 165 | 185 | 225 | ||
| Dry arcing distance(mm) | 178 | 203 | 229 | 279 | 356 | ||
| Cantilever failing load(lb/KN) | 2500/11 | 3000/13 | 3000/13 | 3000/13 | 3000/13 | ||
