Mobile cable

Characteristics

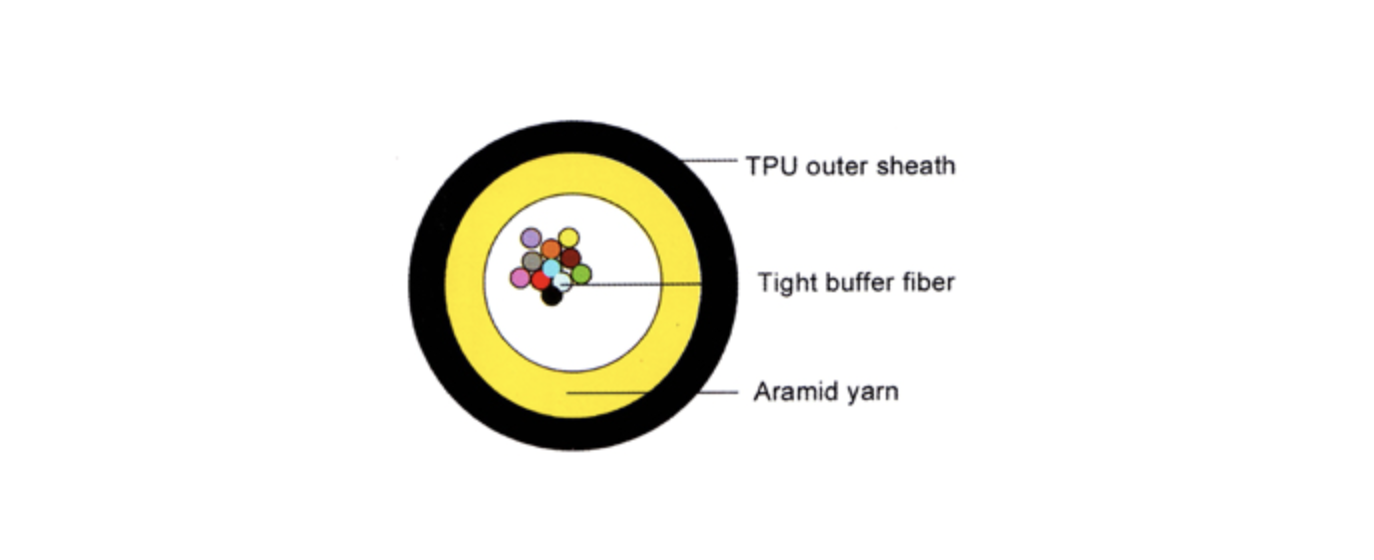

• Tight buffer fiber, aramid yarn, excellent flame retardant;
• Aramid yarn ensures excellent performance of tensile strength resistance
• Excellent performance of softness and twist-resistance
• Material of outer sheath shall be corrosion resistant, water-blocking,flame retardant and environment friendly etc
• Not be influenced by electromagnetism due to all dielectric structural design.
• Outer sheath of special material TPU is abrasion, cold and high temperature resistance

Operating Temperature: -40°C ~+ 60°C

Standards:YD/T1258.4,IEC60794-2-20/21

Applications

• Military communication system cabling in the fields
• Communication transmission for oil field, mining operations etc

Structural Parameters

Fiber Count	Nominal diameter (mm)	Nominal weight (kg/km)	Permitted tension Long term /short term (N)	Permitted Crush Long term/short term (N)	Bend radius Static state /Dynamic state (mm)
2	6.0	32	1000/2000	1000/2000	10D/20D
4	6.2	34	1000/2000	1000/2000	10D/20D
6	6.6	36	1000/2000	1000/2000	10D/20D
