Multi-Purpose Break-Out Cable

Characteristics

• Layer stranded structure, aramid yarn strength member, excellent mechanical performances
• Material of outer sheath shall be corrosion resistant, water-blocking ,flame retardant and environment friendly
• Not be influenced by electromagnetism due to all dielectric s tructural design

Operating Temperature:-20°C ~+ 60°C

Standards:YD/T1258.4,IEC60794-2-20/21

Applications

• Indoor general cabling
• Trunk cabling in buildings

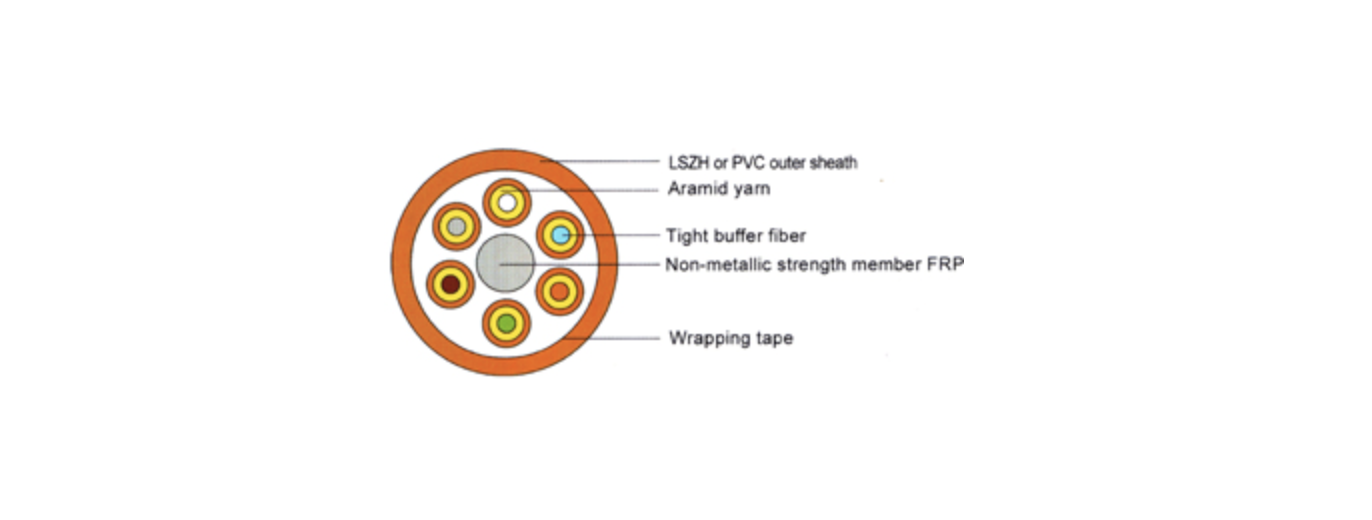

Structural Parameters

Single-deck

Fiber Count	Structure	Nominal diameter (mm)	Nominal weight (kg/km)	Permitted tension Long term /short term (N) (mm)	Permitted Crush Long term/short term (N)	Bend radius Static state /Dynamic state (mm)
4	1+4	7.5	58	100/350	300/1000	10D/20D
6	1+6	8.5	77	200/500	300/1000	10D/20D
8	1+8	9.8	98	300/700.	300/1000	10D/20D
10	1+10	11.0	126	350/850	300/1000	10D/20D
12	1+12	12.5	160	400/1000	300/1000	10D/20D

Double-deck

14	1+4+10	12.0	127	500/1200	300/1100	10D/20D
16	1+5+11	12.5	139	600/1400	300/1100	10D/20D
18	1+6+12	13.0	154	700/1500	300/1100	10D/20D
20	1+7+13	13.5	169	800/1700	300/1100	10D/20D
22	1+8+14	14.2	182	850/1900	300/1100	10D/20D
24	1+9+15	14.8	202	900/2000	300/1100	10D/20D
