Multi-Purpose Distribution Cable

Characteristics

Operating Temperature: -20°C ~+ 60°C

Standards:YD/T1258.4,IEC60794-2-20/21

Applications

• Multi-core mobile connectors
• Indoor general cabling
• Trunk cabling in buildings

Structural Parameters

Fiber Count	Nominal diameter (mm)	Nominal weight (kg/km)	Permitted tension Long term /short term (N) (mm)	Permitted Crush Long term/short term (N)	Bend radius Static state /Dynamic state (mm)
4	4.7	24	200/440	300/1000	10D/20D
6	5.2	30	200/440	300/1000	10D/20D
8	5.8	35	200/440	300/1000	10D/20D
1	6.3	41	200/440	300/1000	10D/20D

Combined Structure

Fiber Count	Structure	Nominal diameter (mm)	Nominal weight (kg/km)	Permitted tension Long term /short term (N) (mm)	Permitted Crush Long term/short term (N)	Bend radius Static state /Dynamic state (mm)
16	1 +4-4.0	13.1	160	400/900	300/1000	10D/20D
20	1+5-4.0	14.1	189	500/1100	300/1000	10D/20D
24	1 +6-4.0	15.3	224	600/1400	300/1000	10D/20D
24	1 +4-4.5	14.5	180	500/1100	300/1000	10D/20D
36	1 +6-4.5	16.8	262	750/1700	300/1000	10D/20D
48	1+6-4.8	17.7	300	750/1700	300/1000	10D/20D
48	1+4-5.5	16.9	239	600/1400	300/1000	10D/20D
60	1 +5-5.5	18.3	295	750/1700	300/1000	10D/20D
72	1 +6-5.5	19.9	355	900/2000	300/1000	10D/20D

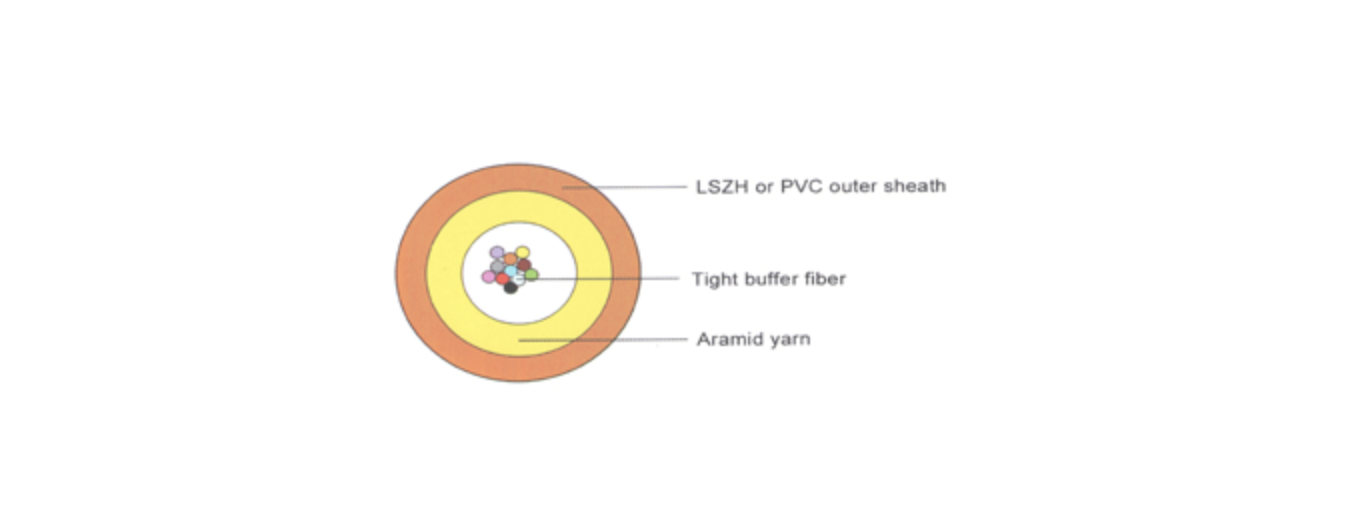

• Tight buffer fiber and can be striped easily
• The designs of tight buffer fiber and aramid yarn ensure excellent performance of flame retardant
• Strength member, aramid yarn, makes the cable have excellent performance of tensile strength resistance
• Material of outer sheath shall be corrosion resistant, water-blocking and flame retardant and environment friendly
• Not be influenced by electromagnetism due to all dielectric structural design
• Reasoning designs and strict manufacturing processes.
