Non-Metallic Central Tube Access Optical Cable

Characteristics

• Strength member, glass yarn. ensure excellent tensile resistance
• Excellent rodent resistance
• Excellent press resistant and flexibility
• Material of loose tube has good hydrolysis resistance and high strength
• Excellent temperature and mechanical performance
• Good water-blocking performance
• Smaller diameter, lighter, easy installation

Operating Temperature: -40°C ~+ 60°C

Standards:YD/T1258.4,IEC60794

Applications

• Duct, aerial, Metropolitan area network and access network, etc

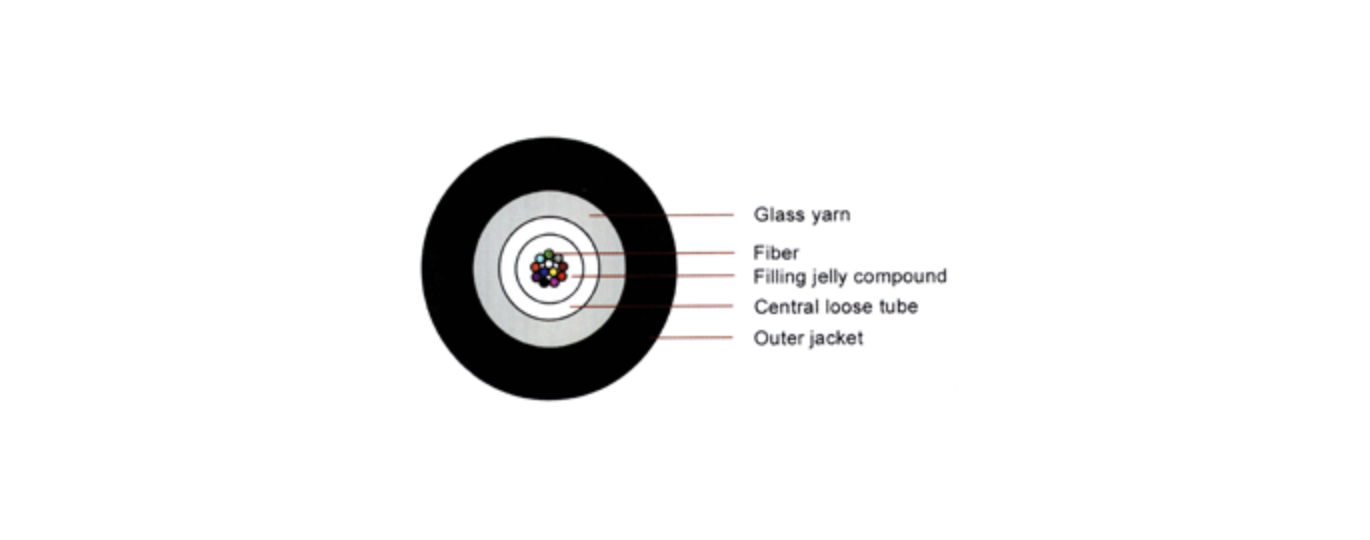

Structural Parameters

Fiber Count	Loose tube diameter (mm)	Nominal diameter (mm)	Nominal weight (kg/km)	Permitted tension Long term /short term (N) (mm)	Permitted Crush Long term/short term (N)	Bend radius Static state /Dynamic state (mm)
2-12	2.2	6	42	600/1500	200/1000	10D/20D
		5.2	33	300/600	200/1000	10D/20D
2-12	2.5	6.2	43	600/1500	200/1000	10D/20D
		5.5	33	300/600	200/1000	10D/20D
24	3.2	6.7	47	600/1500	200/1000	10D/20D
		6	37	300/600	200/1000	10D/20D
