Opto Electric Composite Cable

Characteristics

• Small outer diameter, tight structure and lightweight
• Aramid yarn ensures excellent performance of tensile
• Soft and flexible, good bending performance
• Convenient to construction and maintenance

Operating Temperature:-20°C ~+ 60°C

Standards:YD/T 2159-2010

Applications

• Used as jumper cable for equipment connection

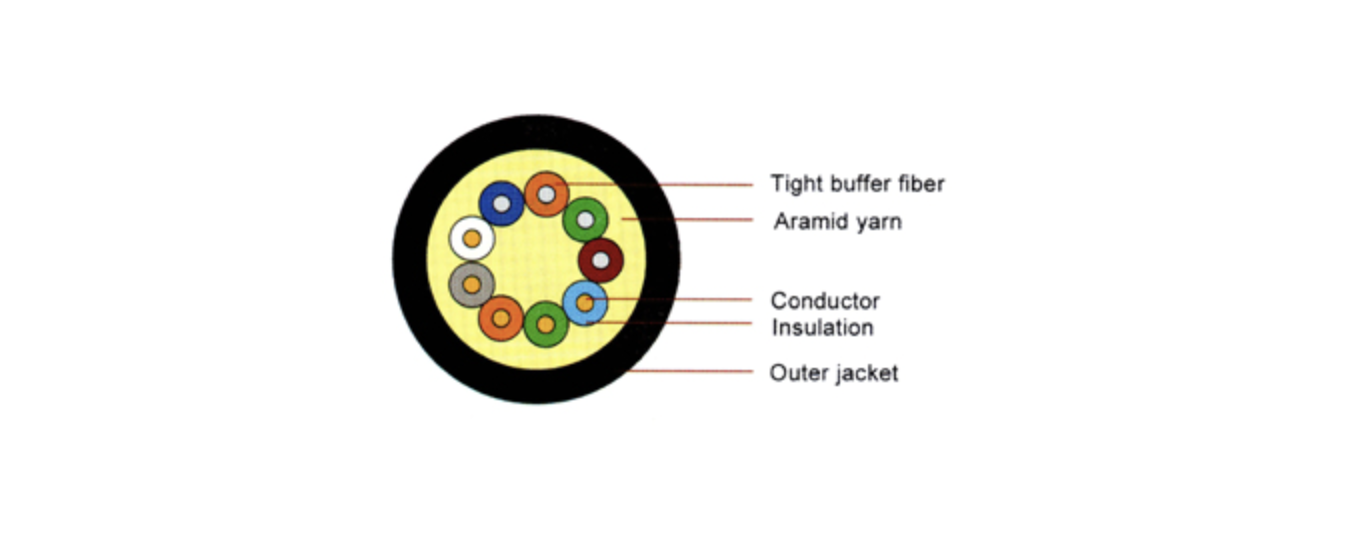

Structural Parameters

Structure	corieuctor structure	Tight buffer diameter	Nominal diameter (mm)	Nominal weight (kg/km)	Rermitted tension longterm/short term (N)	Permitted Crush Long term/short term (N)	Bend radius Static state /Dynamic state (mm)
4F+5C	0.12mmx7	0.6	4.3	17	100/200	200/400	10/20D
4F+5C	0.12mmx7	0.9	5.3	21	100/200	200/400	10/20D
