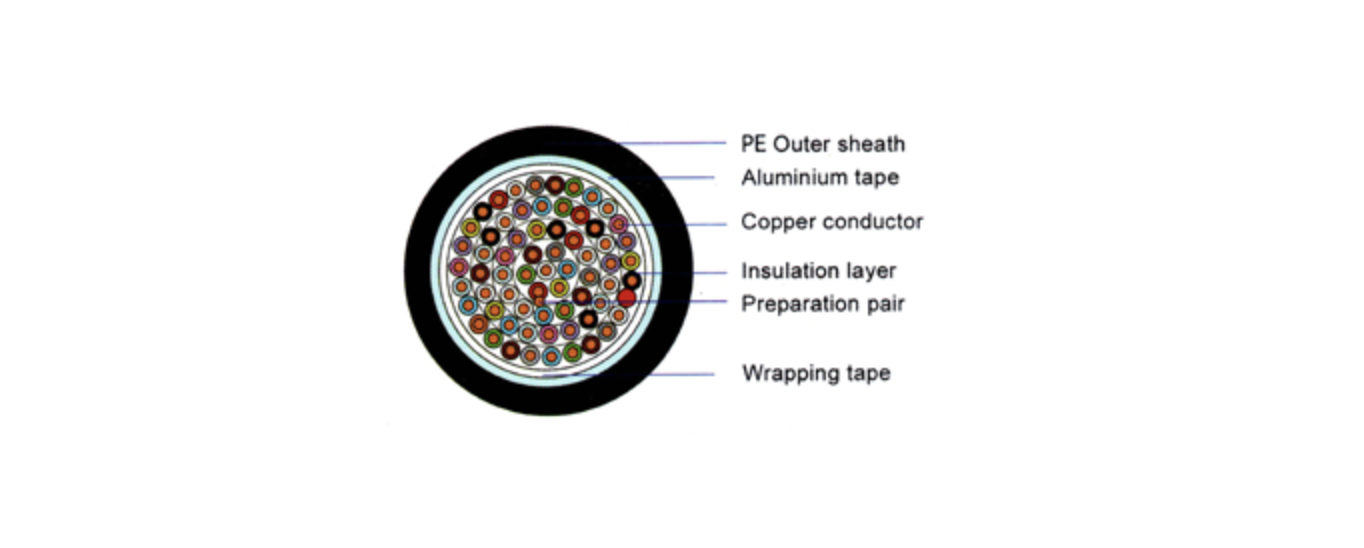

PE SHEATHED COMMUNICATION CABLE HYA STRUCTURE

Electrical characteristics

• D.C resistance 20?C (max) : 0.4mm -148.0 ?/km; 0.5mm-95.0 ?/km
• D.C resistance unbalance( max ) 5% ,(average value not exceed)1.5%
• Mutual capacitance (avg) : 52±2nF/km(more than 10 pairs) 52±4nF/km(10 pairs)
• Insulation resistance :DC 100-500V+20?C (min); 10000M? +KM(non- filling cable),3000M?+KM(filling cable)
• Insulation dielectric strength DC :2kV/3s(conductor to conductor),1kV/3s(conductor to shield)

Material instruction

• Conductor: Copper 0.4~0.9mm
• Insulation: Solid HDPE or Skin PE
• Sheath: PE or Flame Resistance PE

Applications

• For transmission of audio signal, analog signal(not above 150kHz) and digital signals(not above 2048 Kbit/s) also for transmission of digital signals above 2048kbit/s under certain conditions
• Laying method:duct or aerial

Installation Temperature:Not lover then -5?C

Operating temperature:-30?C - +70?C

Structural Parameters

TYPE		HYA
Diameter (mm)	Pairs	Diameter (mm)	Weight (Kg/Km)
0.4	10	9	85
	20	11	134
	30	13	179
	50	15	253
	100	19	417
	200	25	774
	300	30	1131
	400	33	1425
	600	39	2082
	800	44	2750
	1000	49	3289
	1200	53	3875
	1400	55	4390
	1600	60	4800
0.5	10	11	106
	20	13	157
	30	14	217
	50	17	324
	100	21	580
	200	32	1100
	300	36	1581
	400	41	2073
	600	47	3104
	800	54	3953
	1000	61	4918
0.6	10	11	134
	20	14	213
	30	16	288
	50	17	447
	100	25	816
	200	34	1498
	300	42	2216
	400	49	2986
	600	57	3510
	800	65	5625
