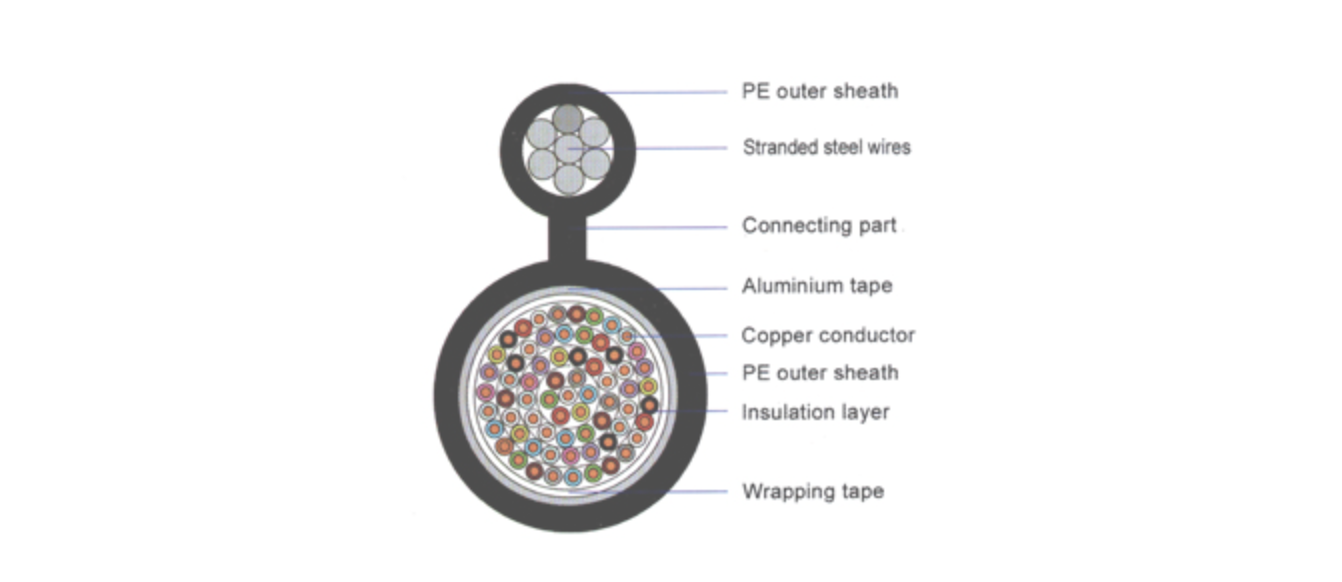

PE SHEATHED COMMUNICATION CABLE HYAC STRUCTURE

Electrical characteristics

• D.C resistance 20?C (max) : 0.4mm -148.0 ?/k; 0.5mm-95.0 ?/km
• D.C resistance unbalance( max ) 5% ,(average value not exceed)1.5%
• Mutual capacitance (avg): 52±2nF/km(more than 10 pairs);52±4nF/km(10 pairs)
• Insulation resistance DC 100-500V+20?C (min); 10000M? +KM(non- filling cable),3000M?+KM(filling cable)
• Insulation dielectric strength DC :2kV/3s(conductor to conductor),1kV/3s(conductor to shield)

Material instruction

• Conductor: Copper 0.4~0.9mm
• Insulation: Solid HDPE or Skin PE
• Sheath: PE or Flame Resistance PE

Applications

• For transmission of audio signal, analog signal(not above 150kHz) and digital signals(not above 2048 Kbit/s) also for transmission of digital signals above 2048kbit/s under certain conditions
• Laying method:duct or aerial

Installation Temperature:Not lover then -5?C

Operating temperature:-30?C - +70?C

Structural Parameters

TYPE		HYAC
Diameter (mm)	Pairs	Diameter (mm)	Weight (Kg/Km)
0.4	10	8	290
	20	10	325
	30	11	362
	50	13	436
	100	18	606
	200	24	940
	300	29	1278
	400	*	*
	600	*	*
	800	*	*
	1000	*	*
	1200	*	*
	1400	*	*
	1600	*	*
0.5	10	9	320
	20	11	370
	30	13	428
	50	16	522
	100	21	740
	200	29	1289
	300	35	1770
	400	*	*
	600	*	*
	800	*	*
	1000	*	*
0.6	10	10	336
	20	13	412
	30	15	487
	50	19	660
	100	25	1024
	200	34	1726
	300	*
	400	*
	600	*
	800	*
