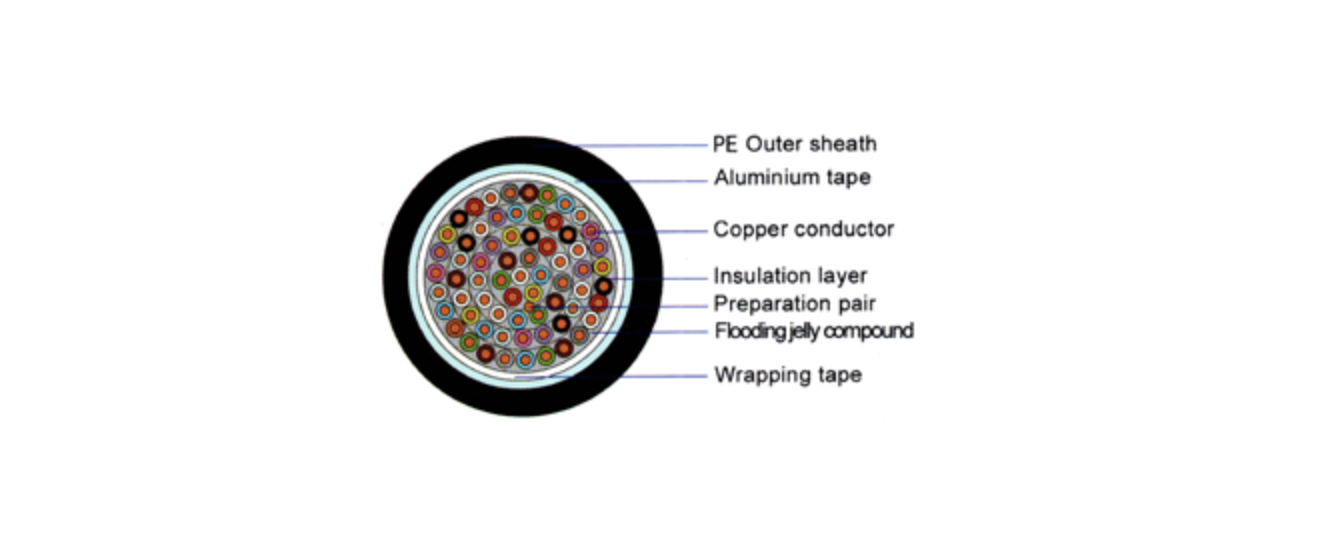

PE SHEATHED COMMUNICATION CABLE HYAT STRUCTURE

Electrical characteristics

• D.C resistance 20?C (max) : 0.4mm -148.0 ?/km;0.5mm-95.0 ?/km;
• D.C resistance unbalance( max ) 5% ,(average value not exceed)1.5%
• Mutual capacitance (avg): 52±2nF/km(more than 10 pairs);52±4nF/km(10 pairs)
• Insulation resistance DC 100-500V+20?C (min) ; 10000M? +KM(non- filling cable),3000M?+KM(filling cable)
• Insulation dielectric strength DC :2kV/3s(conductor to conductor),1kV/3s(conductor to shield)

Material instruction

• Conductor: Copper 0.4~0.9mm
• Insulation: Solid HDPE or Skin PE
• Sheath: PE or Flame Resistance PE

Applications

• For transmission of audio signal, analog signal(not above 150kHz) and digital signals(not above 2048 Kbit/s) also for transmission of digital signals above 2048kbit/s under certain conditions
• Laying method:duct or aerial

Installation Temperature:Not lover then -5?C

Operating temperature:-30?C - +70?C

Structural Parameters

TYPE		HYAT
Diameter (mm)	Pairs	Diameter (mm)	Weight (Kg/Km)
0.4	10	11	112
	20	13	178
	30	15	231
	50	17	325
	100	22	570
	200	28	1044
	300	34	1549
	400	37	1970
	600	44	2888
	800	52	3720
	1000	57	4596
	1200	61	5460
	1400	66	6276
	1600	70	7108
0.5	10	12	147
	20	15	230
	30	16	312
	50	19	448
	100	26	823
	200	34	1568
	300	42	2240
	400	47	2990
	600	56	4361
	800	64	5700
	1000	70	7105
0.6	10	13	175
	20	16	211
	30	18	402
	50	23	613
	100	30	1150
	200	41	2204
	300	47	3200
	400	56	4192
	600	67	6157
	800	*	*
