Pin Insulator (AS)

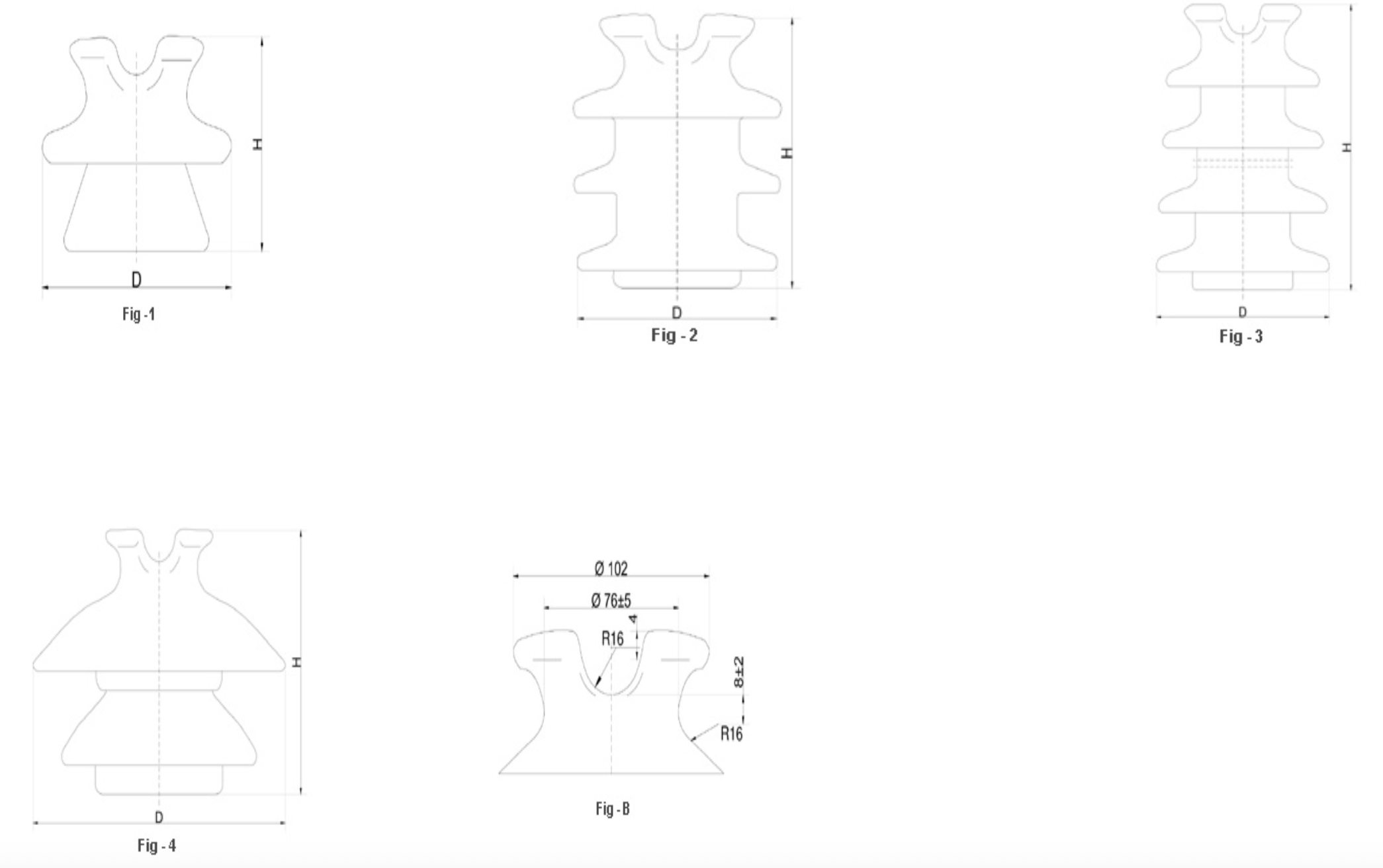

Main dimensions and standard particulars
| Type | Fig | Main Dimension | Creepage Distance | Lightning Impulse Withstand Voltage (KV) | Wet Power Frequency withstand Voltage (KN) |
Minimum Benting Failing Load (KN) |
Pin Type | Designation | |
| H | D | ||||||||
| SLP/11/180 | 1 | 110 | 150 | 180 | 105 | 30 | 7 | A/130/7 | 180S7 |
| LLP/11/275 | 3 | 160 | 150 | 275 | 105 | 30 | 7 | C/150/7 | 275A7 |
| ALP/22/450 | 3 | 200 | 160 | 450 | 150 | 50 | 11 | C/200/11 | 450A11 |
| ALP/22/490 | 3 | 250 | 165 | 490 | 160 | 50 | 11 | C/200/11 | 490A11 |
| FLP/22/480 | 4 | 200 | 250 | 480 | 150 | 50 | 11 | C/150/11 | 480F11 |
| ALP/22/520 | 3 | 210 | 200 | 520 | 150 | 50 | 11 | C/200/11 | 520F11 |
| ALP/33/710 | 3 | 265 | 220 | 710 | 220 | 90 | 11 | C/300/7 | 710A11 |
| ALP/33/920 | 3 | 320 | 240 | 920 | 220 | 90 | 11 | C/300/7 | 920A11 |
