UTP CAT5

Characteristics

• More bandwidth excess than 100MHz standard required
• Comply with ROHS standard
• PE outer sheath. moisture-proof and UV resistance
• The products of special outer sheath or purpose (such as anti-rodent cable) can be designed according to customer's demands

Operating Temperature:-20°C ~+ 60°C

Standards:YD/T1019,ANSI/TIA/EIA-568-C,ISO/IEC11801,IEC61156

Applications

• 100Base- T 4
• 100Base- TX
• 100Base-VG-ANYLAN
• 155Mbps ATM
• 622 Mbps ATM

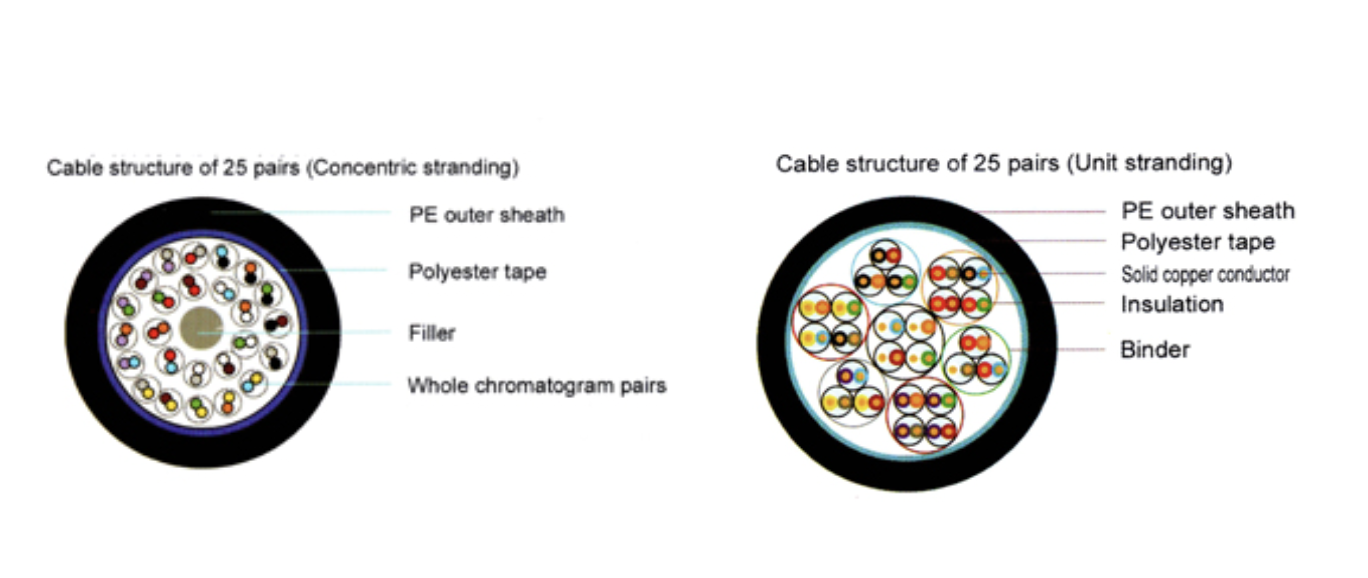

Structural Parameters

Frequency (MHz)	Attenuation (Max) (dB/100m)	NEXT (Min) (dB/100m)	ELFEXT (Min) (dB/100m)	RL (Min) (dB)	Phase velocity (Min) (m/s)	Phase delay (Max) (ns/100m)
4	4.1	54	49	18.8	0.604c	552
10	6.5	48	41	20	0.612c	545
16	8.2	45	37	20	0.614c	543
20	9.3	43	35	20	0.615c	542
31.25	11.7	40	31	18.6	0.617c	540
62.5	17.0	36	25	16.5	0.619c	539
100	22.0	33	21	15.1	0.620c	538
