UTP-CAT6

Characteristics

• More bandwidth excess than 250M Hz standard required
• Support 10-Gigabit Ethernet network transmission rquirements
• Comply with ROHS standard
• The products of special outer sheath or purpose can be designed according to customer's demands.

Operating Temperature:-20°C ~+ 60°C

Standards:YD/T1019,ANSI/TIA/EIA-568-C,ISO/IEC11801,IEC61156

Applications

• 10 Base-T4
• 100 Base- TX
• 100 Base-VG-ANYLAN
• 155 Mbps ATM
• 622 Mbps A TM
• 1000 Base- T
• 1000 Base- TX
• 10G Base-T

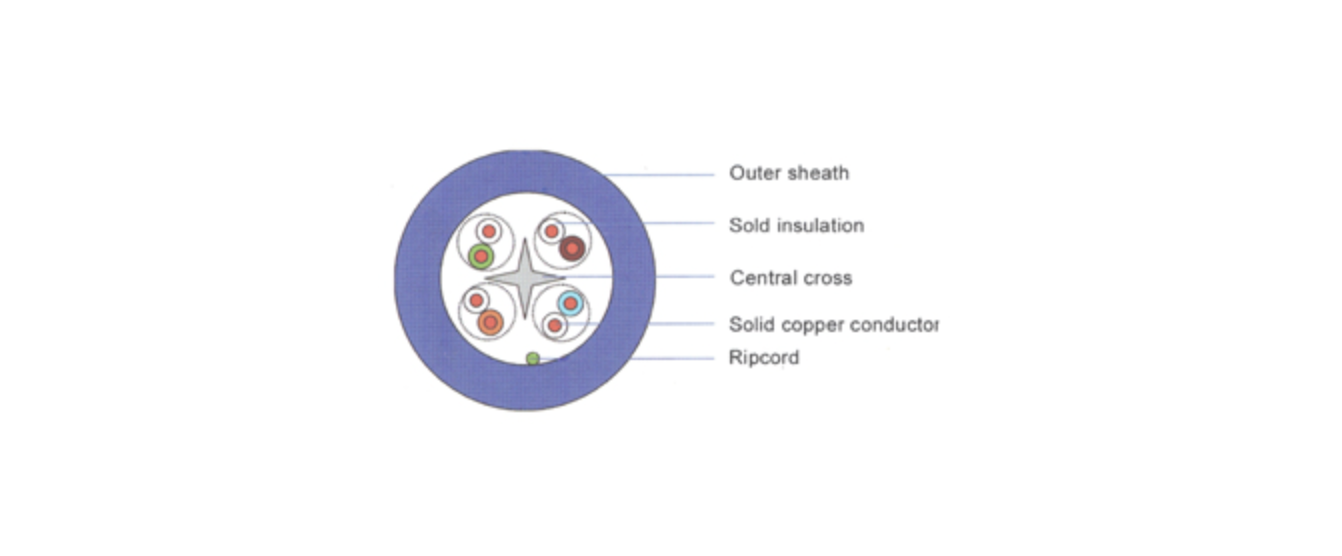

Structural Parameters

Frequency (MHz)	Attenuation (Max) (dB/100m)	NEXT (Min) (dB/100m)	PSNEXT (Min) (dB/100m)	ELFEXT (Min) (dB/100ml	PSELFEXT (Min) (dB/100m)	RL (Min) (Db)	Phase velocity (Min)(m/s)	Phase delay (Max) (ns/100m)
4	3.8	67	64	56	53	23	0.604c	552
10	6.0	61	58	48	45	25	0.612c	545
16	7.6	58	55	44	41	25	0.614c	543
20	8.5	56	53	42	39	25	0.615c	542
31.25	10.7	53	50	38	35	23.6	0.617c	540
62.5	15.4	49	46	32	29	21.5	0.619c	539
100	19.8	46	43	28	25	20.1	0.620c	538
200	29.0	41	38	22	19	18	0.622c	537
250	32.8	40	37	20	17	17.3	0.622c	536
